Level relay

Reliable liquid level monitoring is essential in water supply systems, boiler applications, storage tanks, and many other industrial processes. When a system needs automatic pump start/stop control, overflow prevention, or low-level protection, a Level relay becomes a practical and compact control device that helps maintain stable operation without unnecessary complexity.

On this page, you can explore level relays used for conductive liquid monitoring, including solutions for water supply and drainage control, hydrophore sequencing, and boiler level management. These devices are commonly selected for panel builders, OEM machinery, utility systems, and maintenance teams looking for dependable switching logic in everyday industrial applications.

Where level relays are typically used

A level relay is generally applied where a system must detect whether liquid has reached a defined point and then trigger an output contact. In practice, this can support tank filling, emptying, pump protection, drainage management, and simple automatic replenishment tasks. Compared with more advanced continuous measurement devices, relays are often chosen when the requirement is straightforward on/off control rather than real-time level indication.

These products are particularly relevant in conductive liquid applications, where electrodes can be used to detect the presence or absence of liquid. For users who need broader measurement options or continuous analog feedback, it may also be useful to review a level transmitter range for comparison with relay-based control.

How relay-based level control works

Most relay-based level control solutions in this category work together with measuring electrodes. Once the liquid reaches the electrode point, the relay detects the condition and changes output state to control a pump, valve, alarm, or another part of the circuit. This makes them suitable for automatic water supply and drainage systems where a simple and repeatable switching function is needed.

Because the output is relay-based, these devices are often integrated into control panels using DIN rail mounting or, in some cases, front panel installation. Their role is not to replace every type of level instrument, but to provide practical switching control in applications where installation simplicity and clear contact output are important.

Typical device types in this category

The selection here includes standard level control relays as well as application-specific units for hydrophore and boiler systems. Standard models such as TENSE SSR-05, TENSE SSR-05D, and TENSE VSR-05 are intended for automatic monitoring of conductive liquid level in supply and drainage systems. These are suitable when the main objective is dependable level-based switching in compact control cabinets.

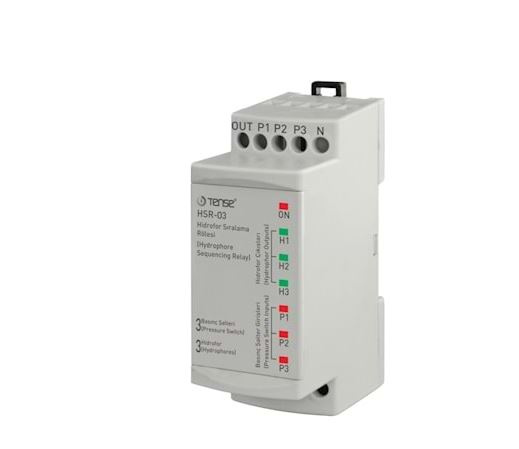

For boiler-related use cases, TENSE SSR-09 and TENSE SSR-19 are designed for steam iron boiler applications, including versions suited to 1-boiler and 2-boiler configurations. In systems where multiple pumps must operate in sequence, models such as TENSE HSR-22, TENSE HSR-03, and TENSE HSR-23W support hydrophore sequencing logic, helping distribute operation across two or three hydrophores and associated pressure switch arrangements.

Why TENSE is often selected for these applications

Within this category, TENSE is a key manufacturer for compact relay-based control products used in liquid level and pump automation tasks. Its product range shown here covers standard electrode-based level control, boiler water level control, and sequencing relays for hydrophore systems, making it relevant for both machine builders and facility maintenance teams.

Many of the listed models are designed for common AC control voltage ranges and panel-friendly mounting formats, which supports easier integration into conventional electrical cabinets. For buyers who want a wider view of relay-based solutions in the same application space, the broader level controller category can also help clarify whether a relay or a more feature-rich controller is the better fit.

How to choose the right level relay

The first point to confirm is the application type. A small water tank and drainage setup may only need a basic level control relay with electrodes, while a steam iron boiler system may require a model specifically intended for boiler level management. If the system includes multiple pumps or hydrophores, a sequencing relay is usually more appropriate than a standard single-function relay.

It is also important to check the number of monitored points or controlled units, the required contact rating, mounting method, and available control voltage. In conductive liquid applications, electrode-based detection is often a practical solution, but the medium and installation environment should always be reviewed to ensure compatibility with the sensing method and the control logic expected in the panel.

Level relays in the wider level measurement ecosystem

Relay-based devices are one part of a broader level instrumentation strategy. In some systems, they are used as the main control element; in others, they work alongside visual or continuous measurement devices. For example, a relay may handle pump switching while a level gauge provides local visual indication for operators and maintenance personnel.

In bulk solids handling or hopper discharge processes, users may need a different approach altogether, such as mechanical assistance from bin vibrators, rather than liquid level relays. Understanding this distinction helps buyers select devices based on the actual material, control objective, and installation conditions instead of relying on category names alone.

Common use cases for the products listed here

A standard relay like TENSE SSR-05 or SSR-05D may be suitable for water tanks, reservoir management, and automatic refill or drainage functions where conductive liquid is present. TENSE VSR-05 serves a similar control purpose in compact panel installations that need straightforward relay output for level detection. These models are commonly considered when simple automation is preferred over a more complex PLC-based solution.

For more specialized requirements, TENSE SSR-09 and SSR-19 support steam iron boiler arrangements, while TENSE HSR-22, HSR-03, and HSR-23W address pump rotation or sequencing tasks in hydrophore systems. This makes the category relevant not only for general liquid level control, but also for equipment builders and service teams handling packaged utility systems.

Final considerations before ordering

Before selecting a device, it is worth reviewing the liquid type, control logic, number of monitored points, number of pumps or boilers, and the preferred installation format. These practical checks often make a bigger difference than choosing by model name alone, especially in replacement projects where panel wiring and field devices are already defined.

This Level relay category is intended for users who need dependable switching control for conductive liquid applications, from basic tank monitoring to boiler and hydrophore operation. If you are comparing options, focus on how the relay will function inside the full system so the selected device matches the real operational requirement, not just the product label.
