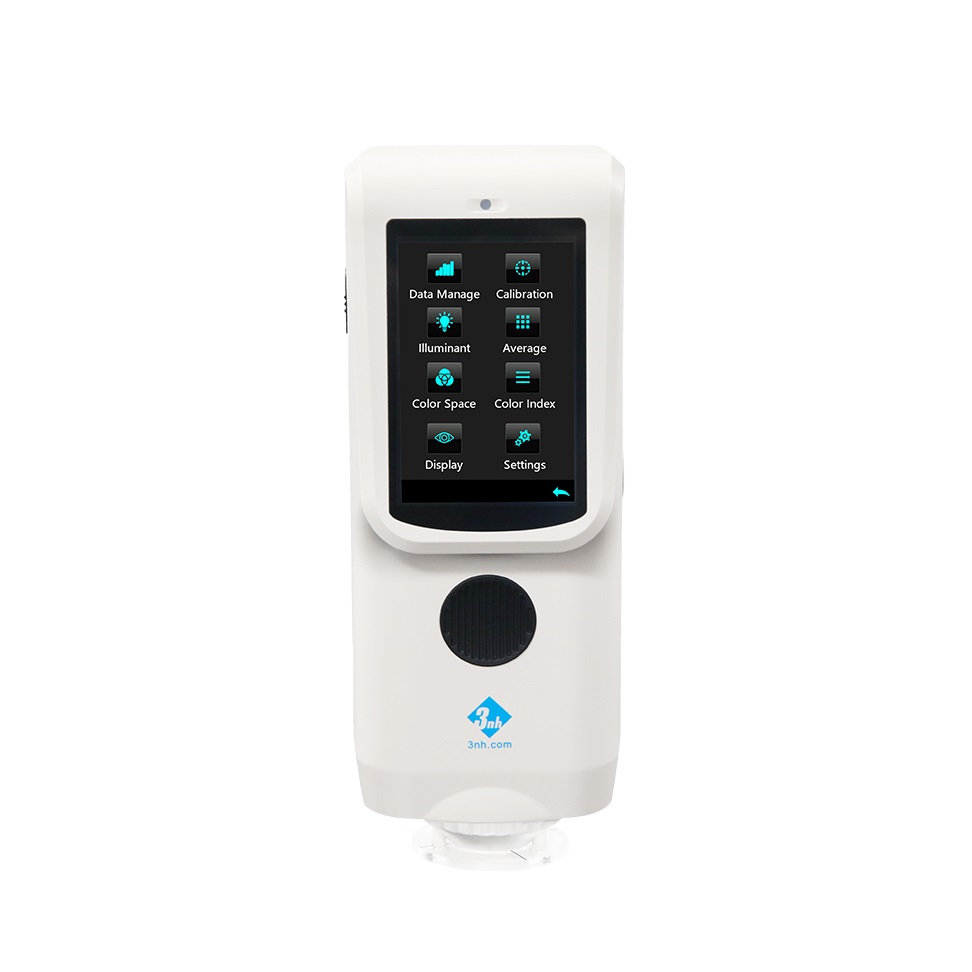

3nh CR8 Spectrocolorreader (Professional Edition)

Integrating sphere size: Φ40mm

Light source: Combined full-spectrum LED light source

Spectroscopic method: Planar grating

Sensor: Silicon photodiode arrays (dual row 32 groups)

Wavelength range: 400~700nm

Wavelength interval: 10nm

Semiband Bandwidth: 10nm

Measurement range: L:0~120

Measurement aperture: Single aperture: Φ8mm (Φ4mm optional)

Focusing method: Fixed Focus

Color space: CIE LAB,XYZ,Yxy,LCh

Observer angle: 10°

Illuminant: D65,A,F2(CWF)

Display accuracy: 0.01

Measurement time: Approx. 1.5s

Size: LxWxH=81x71x214mm

Weight: About 460g

Battery power: Lithium battery, 6000 times in 8 hours

Illuminant life span: 5 years, more than 3 million times measurements

Display: TFT true color 3.5inch, capacitive touch screen

Data port: USB, Bluetooth® 5.0

Data storage: 500 standard samples, 1,0000 samples , APP mass storage

Language: Simplified Chinese, English, Traditional Chinese

Operating temperature range: 0~40℃, 0~85%RH (no condensation), altitude< 2000m

Storage temperature range: -20~50℃, 0~85%RH (no condensation)

Standard Accessories: Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture, MOBCCS APP (official website download)

Optional Accessories: USB micro printer, powder test box, Bluetooth micro printer,holder base
