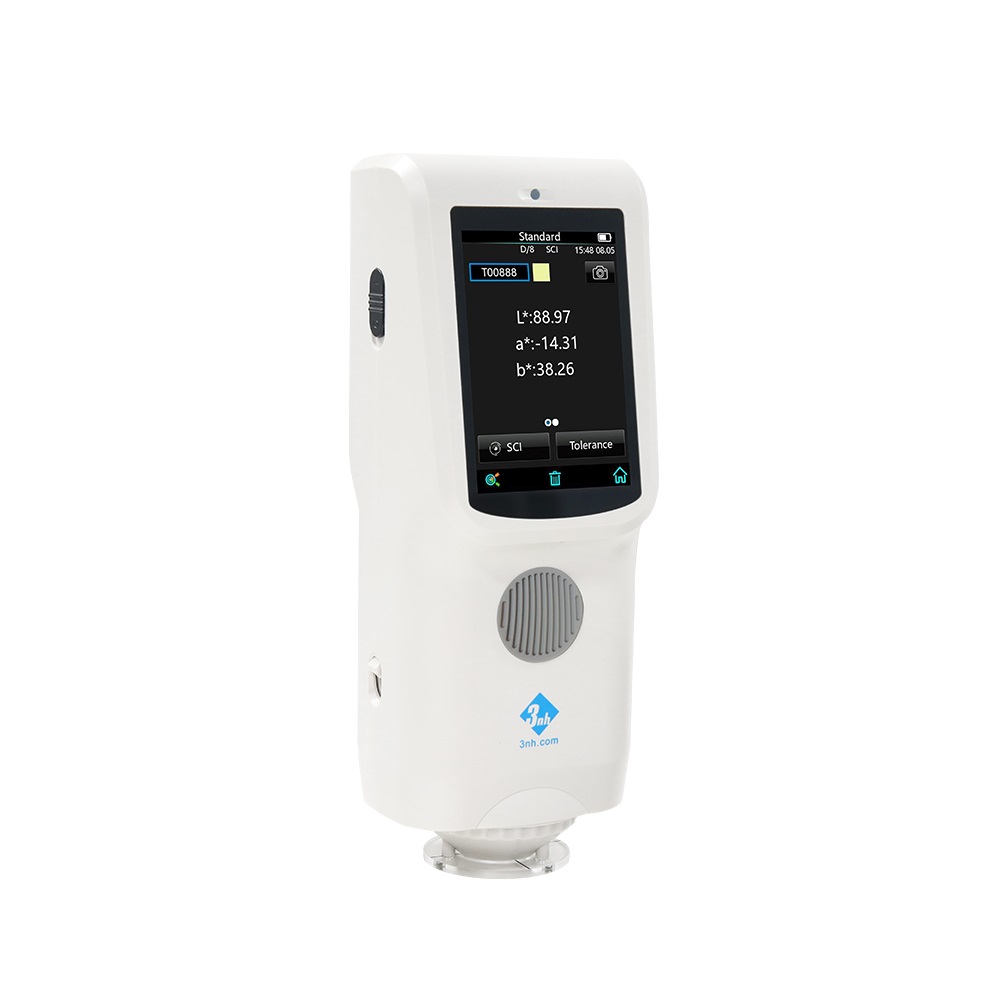

3nh CR9 Spectrocolorreader (Advanced Edition)

Integrating sphere size: Φ40mm

Light source: Combined full-spectrum LED light source, UV light source

Spectroscopic method: Planar grating

Sensor: Silicon photodiode arrays (dual row 32 groups)

Wavelength range: 400~700nm

Wavelength interval: 10nm

Semiband Bandwidth: 10nm

Measurement range: L:0~120

Reflectivity: 0~200%

Measurement aperture: Dual apertures: Φ8mm, Φ4mm

Focusing method: Optical Focus

Color space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)

Observer angle: 2°/10°

Illuminant: D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

Display Accuracy: 0.01

Measurement time: Approx. 1.5s (Measure SCI & SCE about 3.2s)

Measurement method: Single measurement, average measurement (2~99 times)

Locating method: Camera locating, stabilizer locating

Size: LxWxH=81x71x214mm

Weight: About 460g

Battery power: Lithium battery, 6000 times in 8 hours

Illuminant life span: 5 years, more than 3 million times measurements

Display: TFT true color 3.5inch, capacitive touch screen

Data port: USB, Bluetooth® 5.0

Data storage: 1000 standard samples, 30,000 samples (a piece of data can include SCI/SCE at the same time), APP mass storage

Language: Simplified Chinese, English, Traditional Chinese

Operating temperature range: 0~40℃, 0~85%RH (no condensation), altitude< 2000m

Storage temperature range: -20~50℃, 0~85%RH (no condensation)

Standard Accessories: Power adapter, data cable, manual, SQCX quality management software (official website download), black and white calibration box, protective cover, wrist strap, dual aperture: Ø8mm + Ø4mm platform aperture, MOBCCS APP (official website download)

Optional Accessories: USB LxWxH=81x71x214mm printer, powder test box, Bluetooth micro printer, holder base
