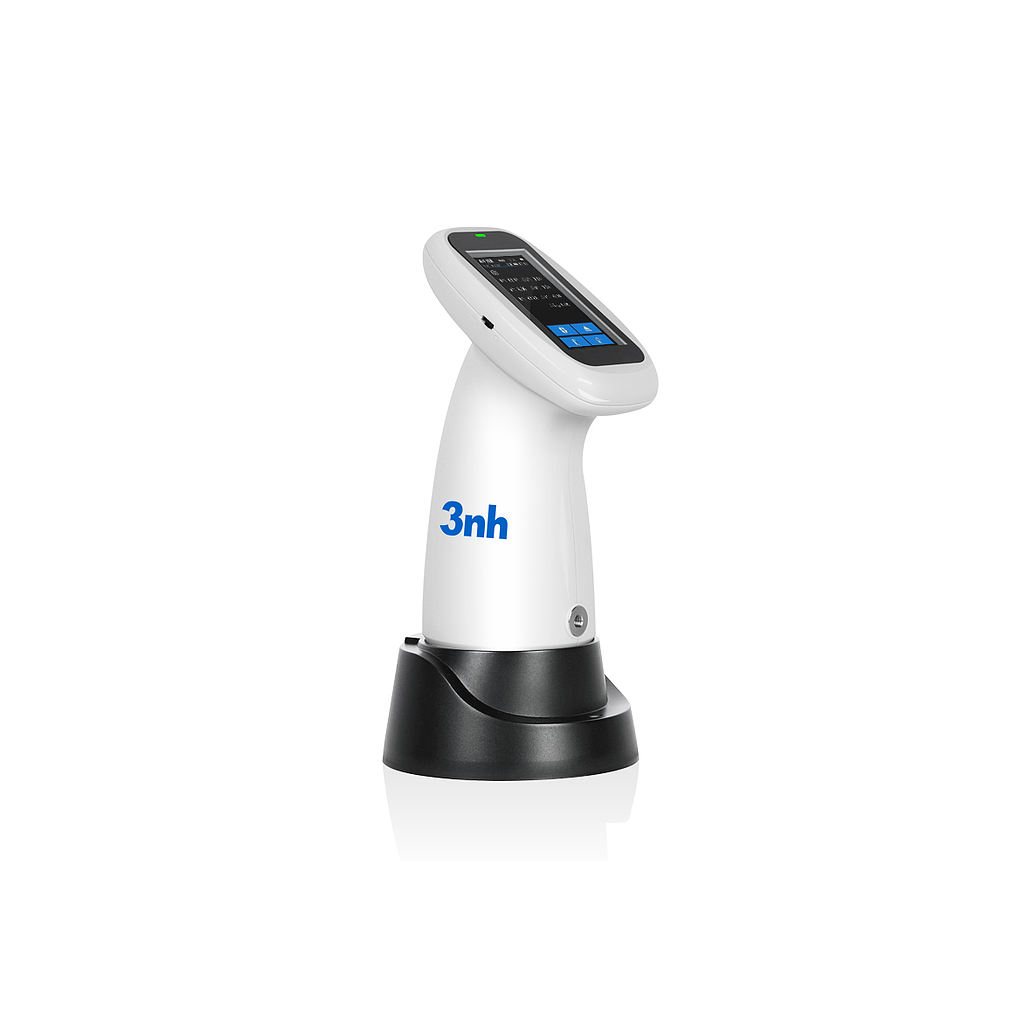

3nh PS2060 Spectrocolorimeter

Optical Geometry: D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristic: Adopt CMOS dual beam splitting sensor;Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, also for fluorescence sample measurement.

Light Source: Combined full spectrum LED light source, UV light source

Integrating Sphere Size: Φ40mm

Sensor: CMOS dual beam splitting sensor

Wavelength Range: 400-700nm

Measuring Aperture: Three Apertures:MAV:Φ8mm；SAV:Φ4mm；SSAV:1x3mm

Specular Component: SCI/SCE

Color Space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99

Color Difference Formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric IndexSpectral reflectance, WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM E313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Partially realize through the PC software /APP software)

Observer Angle: 2°/10°

Illuminant: D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5, F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65(Partially realize through the PC software /APP software)

Display: Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset

Measuring Time: About 1s

Repeatability: Chromaticity value: MAV/SCI, within ΔE*ab 0.03 (After preheating and correction, the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400nm to 700nm: within 0.18%)

Inter-instrument Error: MAV/SCI, Within ΔE*ab 0.3

(Average for 12 BCRA Series II color tiles)

Displayed Accuracy: 0.01

Measured Reflectance :

Range: 0-200%

Reflectance Resolution: 0.01%

Measurement Mode: Single Measurement, Average Measurement(2-99times)

Locating Method: Stabilizer position+camera locating

White Calibration mode: Contact type calibration

Dimension: 94X68X188mm

Weight: About 410g

Battery: Lithium battery,3.7V,3200mAh,8000 cycles in 8 hours

Illuminant Life Span: More than 1.2 million measurements over 10 years

Screen: 2.8 inch TFT true color, Capacitive Touch Screen

Interface: USB,Bluetooth®5.0

Data Storage: Standard 500Pcs, Sample 10000Pcs(One data is able to include SCI/SCE);PC mass storage

Software support: Android,IOS,Windows,Wechat small program, Hongmeng

Language: Simplified Chinese, English, Traditional Chinese

Operating Environment: 0~40℃, 0~85%RH (no condensing),Altitude < 2000m

Storage Environment: -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, Aperture
