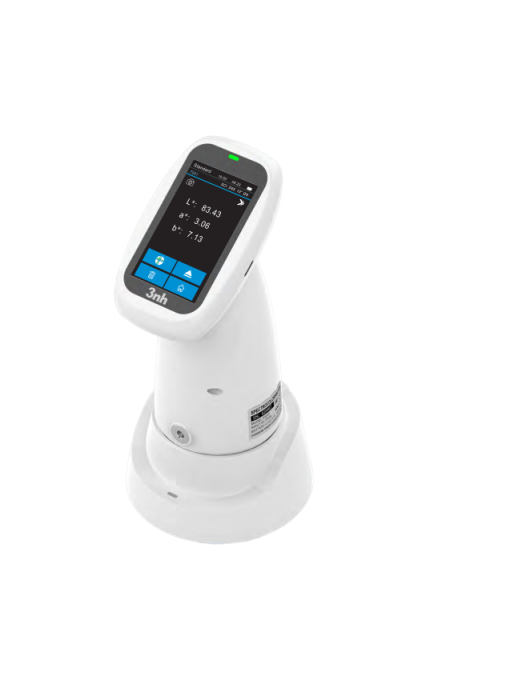

3nh PS220 SpectroColorimeter

Optical Geometry

D/8(diffused illumination, 8-degree viewing angle), SCI (specular component included component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833, ISO7724-1,ASTM E1164, DIN5033 Teil7

Characteristic: Adopt CMOS dual beam splitting sensor; Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other

Light Source: Combined full spectrum LED light source

Integrating Sphere Size: 40mm

Sensor: CMOS dual beam splitting sensor

Wavelength Range: 400-700nm

Measuring Aperture: MAVΦ8mm/Φ10mm (Plat+Sharp Caliber); SAV: Φ4mm/Φ5mm (Plat+Sharp Caliber)

Specular Component: SCI

Color Space: CIE LAB,XYZ, Yxy, LCh, CIE LUV,s-RGB, HunterLab, ẞxy, DIN Lab99

Color Difference: ΔΕ*ab, ΔΕ*υν, ΔΕ*94, ΔΕ*cmc (2:1), ΔΕ*cmc (1:1), ΔΕ*00, DINAE99, ΔΕ (Hunter)

Other Colorimetric Index: Spectral reflectance, WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Same color spectral index Mt, color fastness, color fastness, strength, coverage, 555 color tone classification, Munsell (C/2) (implemented on mobile app) CMYK

Observer Angle: 2°/10°

Illuminant: D65,A,C,D50,D55,D75, F1,F2(CWF), F3,F4, F5, F6,F7(DLF), F8, F9, F10 (TPL5), F11 (TL84), F12(TL83/U30), U35, NBF, ID50, ID65, LED-1, LED-2,LED-3, LED-4,LED-5, LED-6, LED-7, LED-8, LED-9, LED-10 (Partially implemented through mobile apps)

Display: Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset

Measuring Time: Abouls

Repeatability: Chromaticity value: MAV/SCI, within AE*ab 0.02 (After preheating and correction, the average value of the whiteboard was measured for 30 times at an interval of 5s); Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400nm to 700nm: within 0.18%)

Inter-instrument Error: MAV/SCI, Within AE*ab 0.3 (Average for 12 BCRA Series II color tiles)

Displayed Accuracy: 0.01

Measured Reflectance Range : 0-200%

Reflectance Resolution: 0.01%

Measurement Mode: Single Measurement, Average Measurement(2-99times)

Locating Method: Stable film positioning+camera framing positioning

White Calibration mode: Contact type calibration

Dimension: 94X68X188mm

Weight: About 410q

Battery: Lithium battery, 3.7V, 3200mAh, 8000 cycles in 8 hours

Illuminant Life Span: More than 1.2 million measurements over 10 years

Screen: 2.8 inch TFT true color, Capacitive Touch Screen

Interface: USB, Bluetooth

Data Storage: Standard 200Pcs, Sample 10000Pcs (One data is able to include SCI/SCE); APP/PC mass storage

Software support: Andriod, IOS, Windows, WeChat Mini Program, HarmonyOS

Language: Simplified Chinese, English, Traditional Chinese

Operating Environment: 0~40°C, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment: -20~50°C, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, Aperture

Optional Accessory: USB Micro Printer, Powder Test Box
