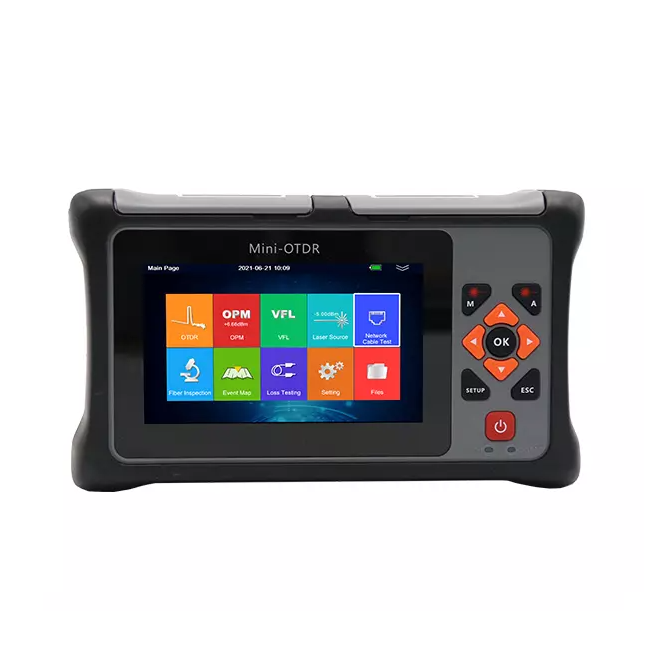

Testing Wavelength (MM: ±20nm, SM: ±10nm): 1650
Dynamic Range: 30dB
Measuring Range: 100km
Event/Attenuation Dead-Zone(m): 3/8
Size/Weight: 175 x 105 x 45mm / 0.56kg (Battery included)
Display: 4.3 inch touch-sensitive TFT-LCD, resolution 800x480
Interface: 2xUSB port (Type A x 1, Micro USB x 1), 1 x OTDR port, 1 x VFL port, 1 x OPM port, 1 x Charging port
Power Supply: Power supply AC/DC adapter; Input: 100V(ac) to 240V(ac), 50~60Hz, 0.8A; Output: 9V(DC), 2A
Battery: 3.7V(dc)/5200mAh x 1pcs rechargeable lithium battery (with Air Traffic Certification); Operating time: 10 hours①, Telcordia GR-196-CORE; Charging time: <3 hours (power off)
Power Saving: Backlight: Common/Highlight/Power saving/Customized; Auto Power Off: Never/1min/5min/10min/30min/60min
Data Storage: Internal memory: SD card 8GB
Language: Multi-language support
Environmental Conditions:
Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)
Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)
Accessories:
Standard: Main unit, power adapter, : Lithium battery, FC adapter, USB cord,
User guide, CD disk, carrying case
Optional: SC/ST/LC adapter, Bare fiber adapter
OTDR Module
Pulse Width
Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20us
Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs
Distance Range:
Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km
Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km
Sampling Resolution: Minimum 0.2m
Sampling Point: Maximum 64,000 points
Linearity: ≤0.05dB/dB
Averaging Time: 10s, 15s, 30s, Real Time, Customized
Distance Resolution: 0.01m
Distance Accuracy: ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
IOR Setting: 1.0000~1.9000, 0.0001 step
Units: km, miles, kfeet
Testing Modes:
Visual fault locator: Visible red light for fiber identification and troubleshooting
Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output)
Field microscope probe
Other Functions
Real time sweep: 1Hz
Averaging modes: Timed (1 to 3600 sec.)
VFL Module (Visual Fault Locator)
Wavelength (±20nm): 650nm
Power: 10mw, CLASSIII B
Range: 12km
Connector: FC/UPC
Launching Mode: CW/2Hz
OPM Module (Optical Power Meter)
Wavelength Range (±20nm): 800~1700nm
Calibrated Wavelength: 850/1300/1310/1490/1550/1625/1650nm
Test Range: Type A: -65~+5dBm (standard); Type B: -50~+26dBm (optional)
Resolution: 0.01dB
Accuracy: ±0.35dB±1nW
Modulation Identification: 270/1k/2k Hz, P input≥-40dBm
Connector: FC/UPC
OLS Module (Optical Laser Source)
Working Wavelength (±20nm): Same as OTDR Wavelength
Output Power: -10 to -4dBm±2dB
Output Mode: CW/270/1k/2k Hz
FM Module
Magnification: 400X
Resolution: 1.0µm
View of Field: 0.40×0.31mm
Storage/working Condition: -18℃~35℃
Dimension: 235×95×30mm
Sensor: 1/3 inch 2 million of pixel
Weight: 150g
USB: 1.1/2.0
Adapter:
SC-PC-F (For SC/PC adapter)
FC-PC-F (For FC/PC adapter)
LC-PC-F (For LC/PC adapter)
2.5PC-M (For 2.5mm connector, SC/PC, FC/PC, ST/PC)
