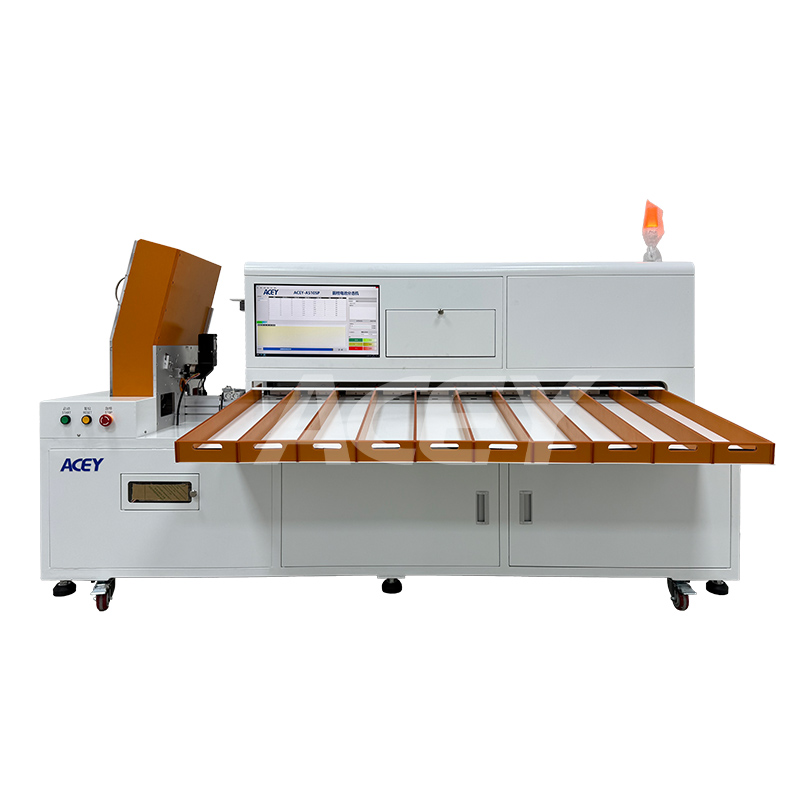

ACEY ACEY-AS10SP-33140 Cylindrical Battery Lithium Cell Sorting Machine

Applicable Cell Types: Cylindrical cells: 32135, 33140, 38121, 40135, 46140, etc.

Sorting Channels: 10 Channels

Production Capacity: Approx. 3200 cells/hour

Changeover Time: About 15 minutes

Internal Resistance Tester: Optional different brands/models

Barcode/QR Scanning: Optional

MES Communication: Supported

Power Supply: 220V, 50Hz/60Hz

Total Power: ≤1.5KW

Air Pressure: 0.5～0.6MPa

Ambient Temperature: -30°C ~ 50°C

Humidity: ≤90%

Noise Level: ≤80dB

Grounding Type: Direct grounding

Installation Environment: Flat, vibration-free, no strong electromagnetic interference

Machine Dimensions: L2331 × W1055 × H1300mm

Machine Weight: 246KG

Machine Color: Computer white (customizable)

Product Features

Suitable for large cylindrical lithium battery sorting and matching

Industrial computer + motion controller control system

High-precision servo motor operation

Compatible with various brands and models of internal resistance testers

Automatic data collection, analysis, and storage

Independent NG cell rejection function

MES system integration supported

QR code, barcode, and side scanning functions available (optional)

Sticker sorting can operate independently or inline with production lines

Fast model changeover within approximately 15 minutes

Compact structure with elegant industrial design

Easy movement with universal caster wheels

Stable performance and low maintenance design

Ideal for EV battery, ESS battery, and 3C battery pack production
