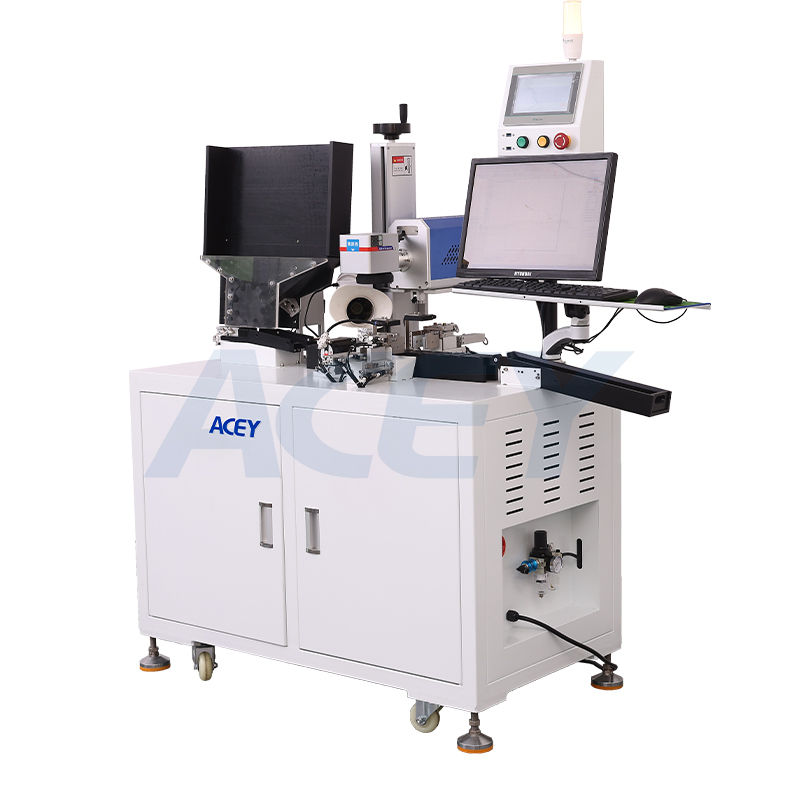

ACEY ACEY-ASM21700 21700 Battery PVC Film Stripping Machine Automatic Laser Cutting And Removal Machine

Applicable cell size: 21700

Heating wire temperature: 200 ℃

peeling rate: ≥ 95%

Stripping speed: 30PPM

Hopper loading capacity: 300PCS(21700)

Power consumption of the whole machine: 1500W

Input power: AC220V,50HZ

Input Barometric Pressure: ≥ 0.6MPa

Features

The feeding adopts hopper type automatic feeding mode.

Servo motor is used for cell rotation

Servo motor is used for cell positioning

The film is stripped by the heat radiation generated by heating.

Conveyor belt output is adopted for discharging

Scrap at both ends shall be taken by finger cylinder.

The waste material adopts special environmental protection recycling system device.
