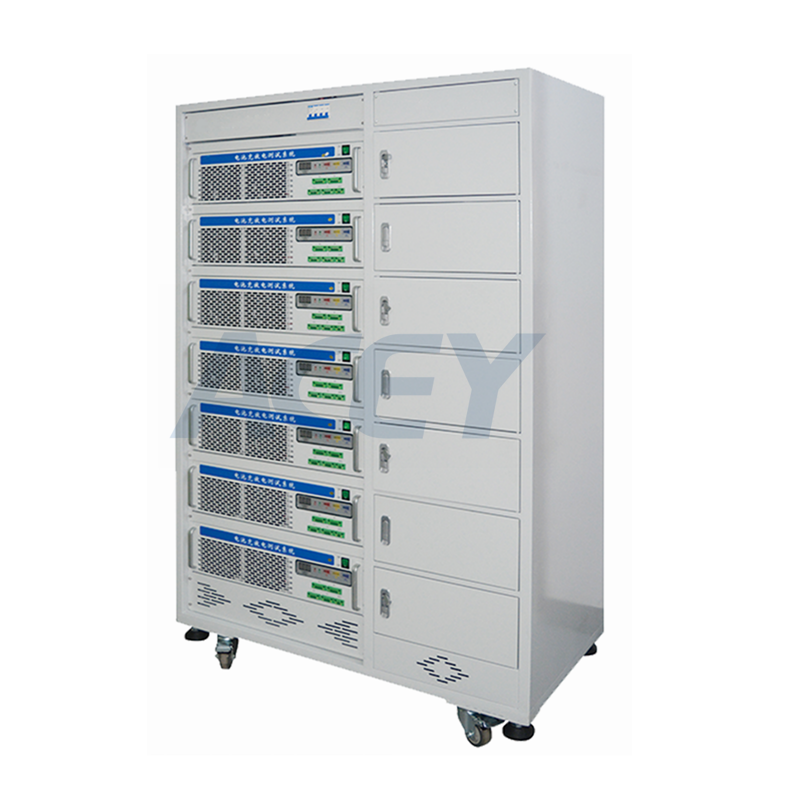

ACEY ACEY-BT10020-7 Charging and Discharging Aging Machine

Charging Function: With constant current and constant voltage charging function

Discharge Function: With constant current and current limiting discharge function

Charge and Discharge Interface: Fully supports same-port charging/discharging and separate charging/discharging of battery packs, compatible with 2-wire (P+ P-) and 3-wire (P+ P- C-) configurations

USB Interface: Equipped with USB interface

Application: Used with barcode scanner to collect battery pack ID numbers for convenient data query after battery aging

Safety Protection: Anti-reverse connection protection function

Voltage Protection: Upper and lower voltage limit protection setting

Safe Discharge Current Protection: Maximum current 10A

Charging Requirements:

Charging Voltage: 0–100V, continuously adjustable, accuracy ±1mV (high precision dedicated)

Charging Current: 0–10000mA, continuously adjustable, accuracy ±1mA (high precision dedicated)

Discharge Requirements:

Discharge Voltage: 0–100V, accuracy ±1mV (high precision dedicated)

Discharge Current: 0–10000mA, accuracy ±1mA (high precision dedicated)

Discharge Current: 0–20A, accuracy ±1mA (high precision dedicated)

The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.
