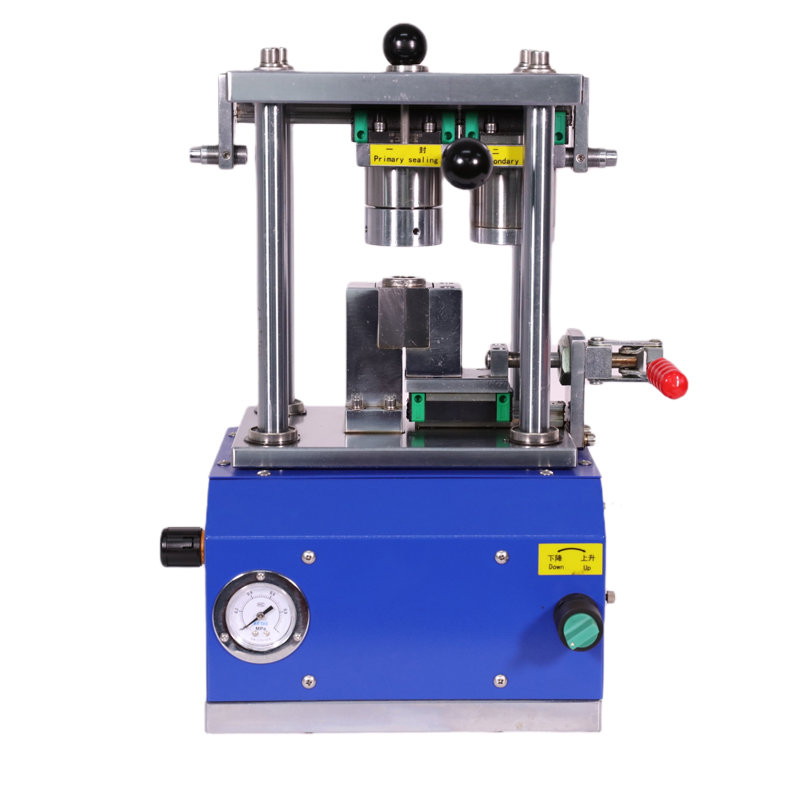

ACEY ACEY-CBS-1 Cylindrical Battery Manual Sealing Machine

Operating force of hand rocker: <6 kg

Standard cylindrical battery packaging pressure: about 80–100 kg/cm²; the machine is adjusted before leaving the factory. If higher pressure is required (about 200 kg/cm² ≈ 8 tons), please consult the manufacturer; it can be adjusted later

Mold material: imported from Japan

Structural material: high-strength chromium steel, surface will never rust after environmental protection plating and spraying treatment

Dimensions: 240mm × 195mm × 265mm

Weight: 50kg

1. Built-in safety overflow oil valve, the pressure can be adjusted according to the needs, and the upper limit of the pressure can be set at the same time, to prevent the damage caused by the excessive pressure caused by the misoperation, and to ensure the safety of the machine.

2. Built-in pressure gauge can observe and accurately control the size of the sealing pressure.

3. Using hydraulic drive, the pressure can reach 8T, the battery seal has no vibration and no leakage.

4. Specially designed hydraulic structure, labor-saving operation.

5. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.

6. Small size, easy to operate, can be placed in a glove box for operation.

7. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
