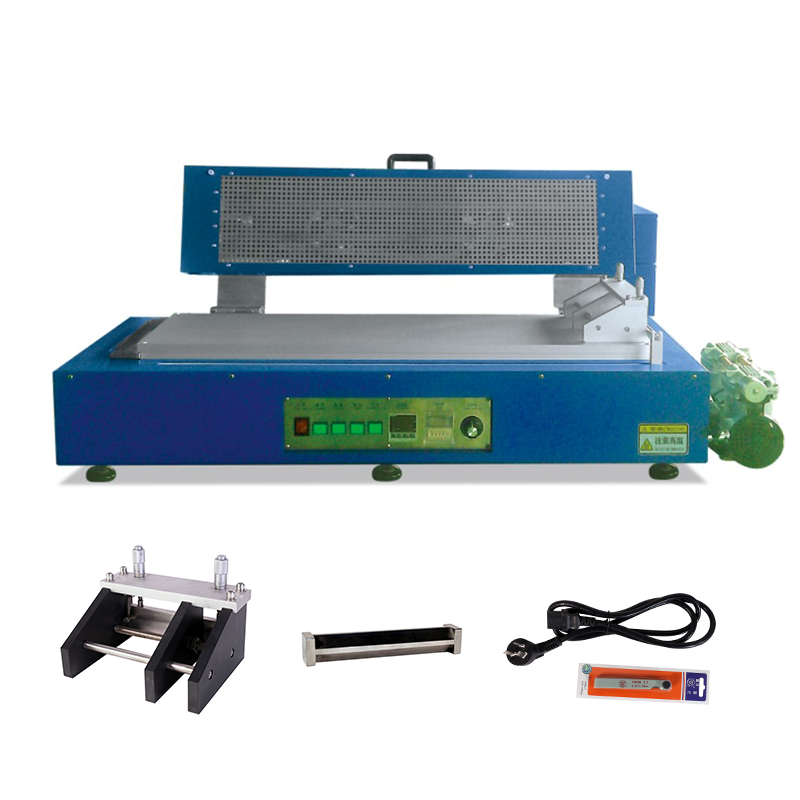

ACEY ACEY-HFC260 Lab Lithium Battery Electrode Coating Equipment With Heating Function (0～120mm/sec)

Film coating speed: 0～120mm/sec (lithium iron phosphate paste)

The stroke can be adjusted by the stroke switch between 0～250mm

Vacuum plate: Aluminum plate with vacuum

Vacuum plate size: L365mm × W200mm × H32mm

Scraper adjustable range: 0～3.5mm

Heating drying system: Room temperature～130℃, digital display temperature controller, accuracy ±1℃

Includes 1 oil-free vacuum pump

Power supply: 220V/50Hz

Weight: 49KG

Dimensions: L505mm × W355mm × H325mm

1. Drying heating, digital display temperature control, working temperature 130℃.

2. Digital display timer, drying time can be set freely.

3. The coating speed is adjustable within the range of 0～120mm/sec (lithium iron phosphate slurry).

4. Vacuum aluminum plate, can quickly place or remove the substrate.

5. The stroke can be adjusted by the stroke switch between 0～250mm.

6. With a scraper for adjusting the thickness of the coating film (precision 0.01mm).
