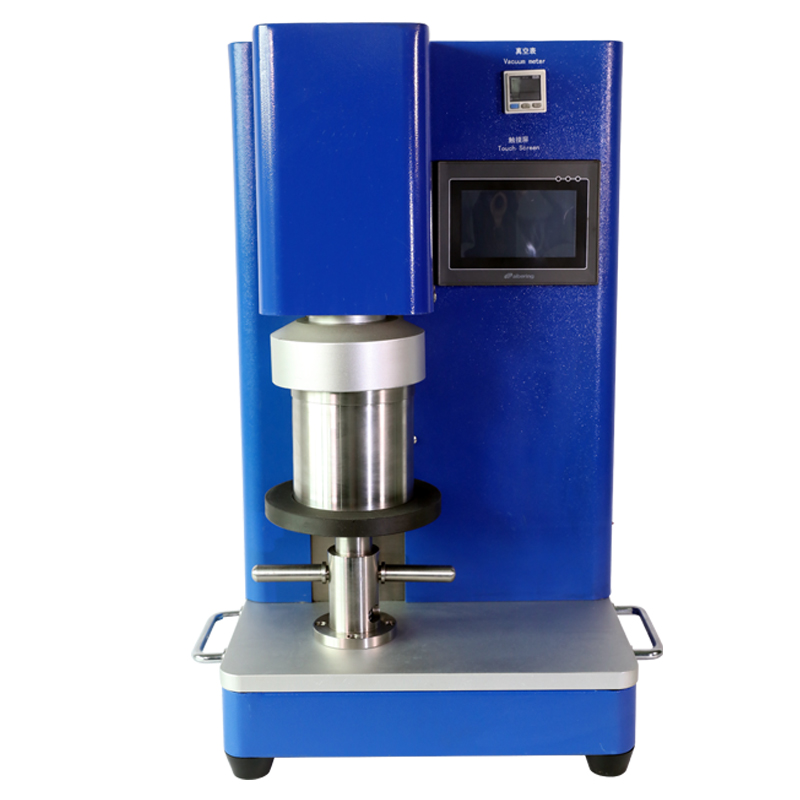

ACEY ACEY-PVM-250ML Laboratory Dual-shaft Planetary Vacuum Mixing Machine (250ml)

Power supply voltage: AC220V

Rated power: 200W

Stirring speed: MAX600 rpm

Multi-stage function: three-stage speed can be set

Accessory volume: 150ml ~ 250ml stainless steel vacuum stirring tank, can be made according to customer requirements

Mixing time: 0～9999 minutes (can be set)

Built-in vacuum pump, vacuum degree -0.08Mpa, maintain 2H without obvious pressure drop.

Standard twin-shaft screw agitator, others are designed according to the tank body

Accessories volume: 150ml～500ml vacuum stirring tank

Mixing time: 0~600min can be set

Size: 335m×325mm×575mm (L×W×H)

Weight: about 35kg

1. Vacuum environment, effectively eliminate the bubbles generated during the mixing process, this machine comes with a vacuum system.

2. The equipment is preferentially equipped with dual-shaft planetary stirring paddles and optional single-shaft blade stirring paddles. Different types and combinations of stirring shafts are configured according to the size of the stirring tank, so that the material is tossed up and down and the slurry is mixed quickly and evenly.

3. The design of forward and reverse stirring function can realize high-speed stirring of higher viscosity slurry, and the stirring uniformity is good. The stirring motor adopts stepping motor PLC frequency speed control. Different speed and torque can be selected according to different processes and different viscosities. Multi-stage speed operation, the stirring speed and time of each stage can be set.

4. Multi-stage speed operation can be carried out, and the stirring speed and time of each stage can be set.

5. Bracket design, easy to operate, to ensure safety during the vacuum mixing process.
