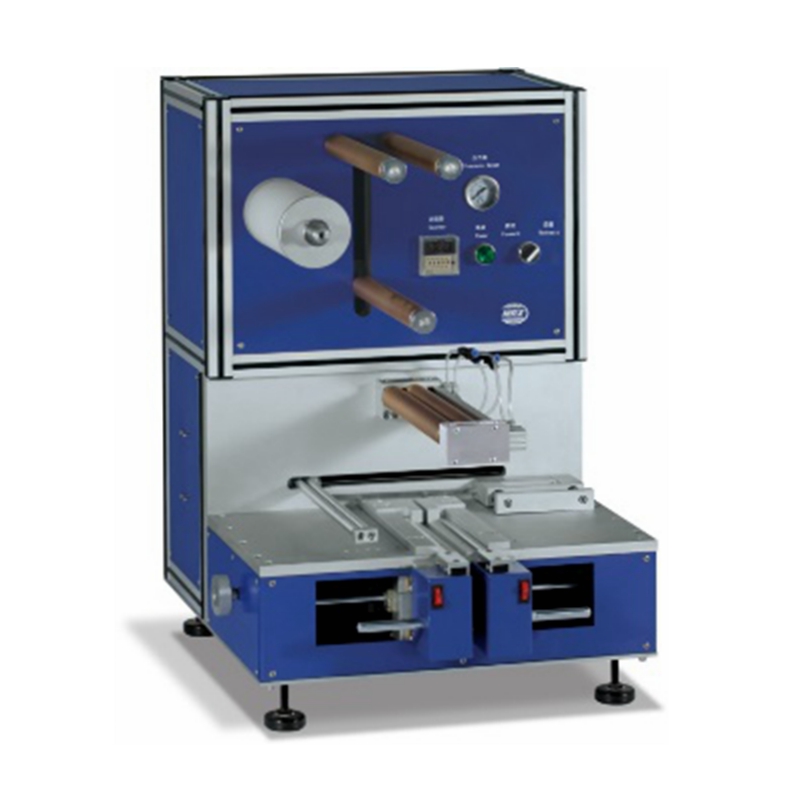

ACEY ACEY-SSM-A Manual Lithium Battery Stacking Machine For Pouch Cell Cathode And Anode Stacking

Lamination method: Z-shaped lamination

Diaphragm material roll: Rolled diaphragm, 3-inch core, diameter φ200 mm

Applicable pole piece specifications: Length (20–200) mm, width (20–200) mm, thickness within 16 mm

Swing roller travel stroke: 300 mm

Power supply: AC 220V / 50Hz

Power: 200 W

Air pressure source: 0.4–0.7 MPa

Equipment size: L650 × W400 × H700 mm

Control box size: L200 × W300 × H380 mm

Weight: 30 kg

1. The adjustment, operation and maintenance of the machine are simple and easy.

2. Applicable to a wide range of cell stack sizes.

3. High working efficiency, with digital display counter.

4. Adopt foot switch to control cylinder movement.

5. The machine is small in size, exquisite and beautiful in appearance.
