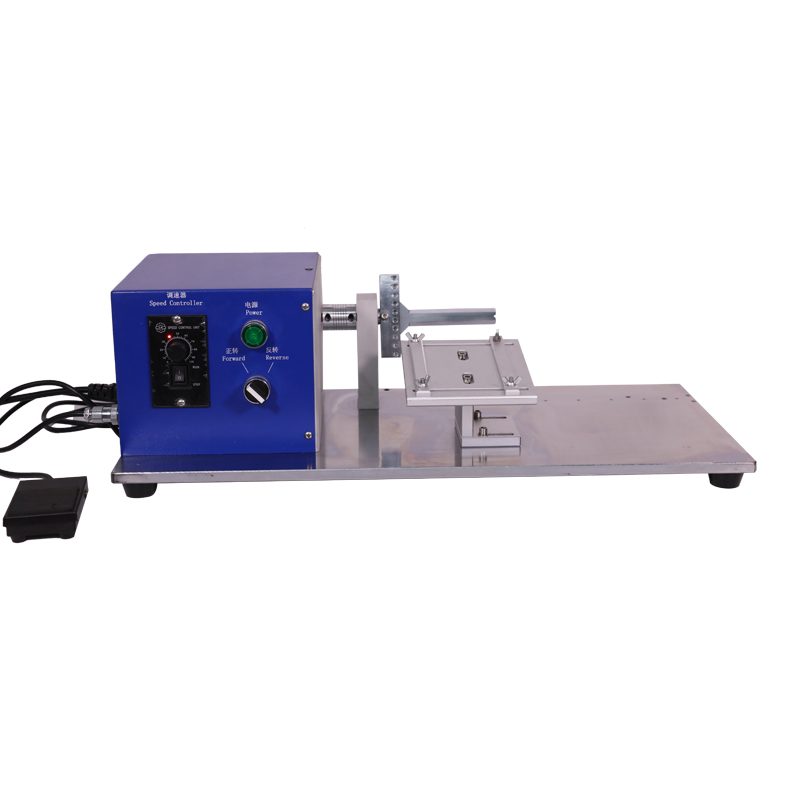

ACEY ACEY-WM-P Semi-automatic Battery Electrode Winding Machine For Pouch Cell

Power supply: 220V/50Hz

Power: 25W～40W

Speed: 0～170 rpm adjustable

Applicable flat battery cell size: Length (20～100) × Width (20～80) × Thickness (MAX30) mm, according to customer selection

Applicable cylindrical batteries: Within Φ35 × L90mm (replacement of winding flat batteries and cylindrical batteries requires replacement of winding needles)

Standard configuration of round winding needle: Φ3mm

Equipment size: L550mm × 310mm × 280mm

Equipment weight: 25Kg

Structural material: High-strength chrome steel, the surface will never rust after environmental protection plating and spraying treatment

1. The up and down, left and right, front and rear positions of the guide pole piece groove and ruler can be adjusted.

2. Winding idler, to ensure the winding tightness of the battery when winding.

3. Increase the winding tail bracket to improve the winding accuracy of the battery.

5. The machine is small in size, exquisite and beautiful in appearance, and easy to operate.
