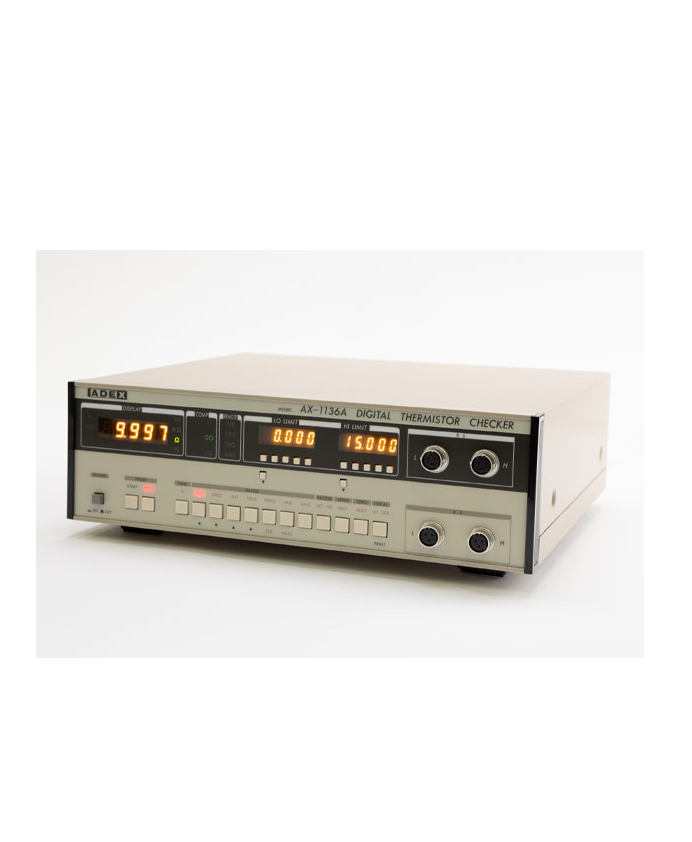

ADEX AX-1136A Digital Thermistor Checker (0Ω ~ 5000kΩ)

Measuring range and Accuracy (at 23°C±5°C)

Range/ Measuring range/ Measuring current/ Accuracy/ Display

10Ω/ 0.000Ω～ 15.000Ω/ 3mA/ within ±0.03％±2digit [Slow]/within ±5digit [FAST]/ 15000

100Ω/ 0.00Ω～ 150.00Ω/ 1mA/ within ±0.02％±2digit [Slow]/within±5digit [FAST]/ 15000

1kΩ/ 0.0Ω～1500.0kΩ/ 300μA/ within ±0.02％±2digit [Slow]/ within±5digit [FAST]/ 15000

10kΩ/ 0.000kΩ～15.000kΩ/ 100μA/ within ±0.02％±2digit [Slow]/ within±5digit [FAST]/ 15000

100kΩ/ 0.00kΩ～150.00kΩ/ 10μA/ within ±0.02％±2digit [Slow]/ within±5digit [FAST]/ 15000

1MΩ/ 0.0kΩ～1500.0kΩ/ 1μA/ within ±0.02％±3digit [Slow]/ 1500

5MΩ/ 0kΩ～ 5000kΩ/ 0.5μA/ within ±0.02％±5digit [Slow]/ 5000

％/ 1Ω～ 5000kΩ/ refer to the above/ refer to the above/ ±50.00％

Open-circuit voltage of measuring terminal: less than 12V

Measuring method:4-terminal measurement, Scanning of Rs/Rx, Available to Contact-Check both Rs and Rx.

Sampling time:

[Free running mode] 5 times/sec. [Slow], 10 times/sec. [FAST] [If the average mode] 1.8 times/sec. [Slow], 3.7 times/sec. [FAST]

[Remote start mode] about 27msec. [Slow], about 15msec [Fast] (Difference by range and mode.)

Comparator set range: ±50.00％ both upper and lower limit.

Indication of comparator's comparison result: LED indication LO/GO/HI and buzzer

Control signal

Remote start input："L" [0V] →"H" [DC12V] start

Remote hold input：Open and "H" [DC12V] ：Free run/"L" [0V]：Hold

comparison output [LO/GO/HI]：open collector：max.40V, 100mA

contact error output [CE]：open collector：max.40V, 100mA

end of comparison output [EOC]：open collector：max.40V, 100mA

Operation condition: [Temp.] +5*C～+40*C[Humidity] less than 85％

Power supply:AC100V～240V selectable, 50/60Hz, about 60VA

Outer dimension: about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 3.8kg
