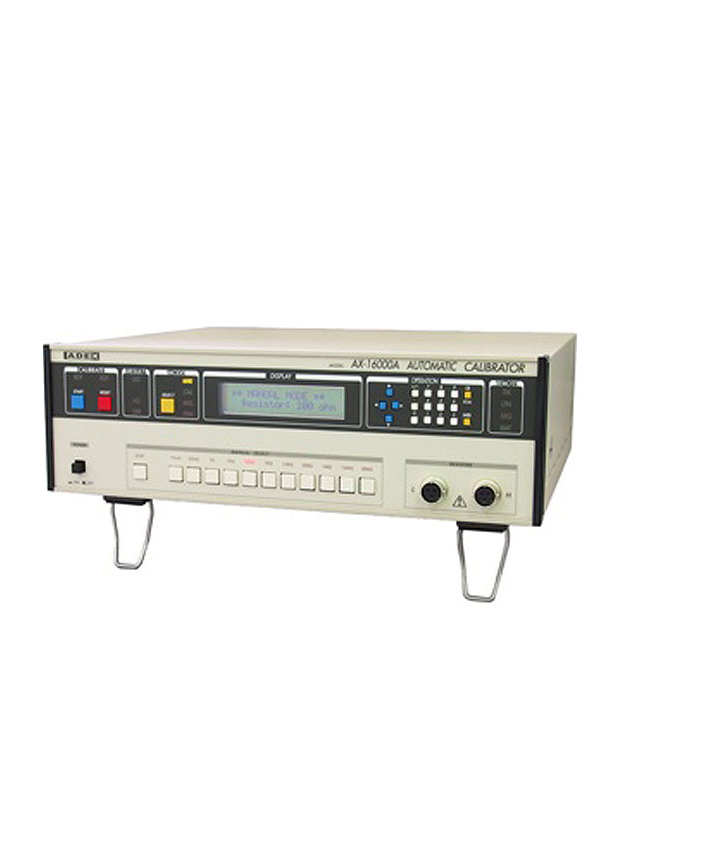

ADEX AX-16000A Automatic Calibrator (10mΩ ~ 100MΩ)

Accuracy of Installed Standard Resistors (at 23℃)

Reference Resistance Value / Accuracy / Rating / Temperature Coefficient

SHORT: < 1μΩ / 0.5A / ----

10mΩ: < ±0.02％ / 0.5A / ±10ppm/℃

100mΩ: < ±0.01％ / 0.5A / ±10ppm/℃

1Ω: < ±0.005％ / 0.5A / ±5ppm/℃

10Ω: < ±0.005％ / 1A / ±5ppm/℃

100Ω: < ±0.005％ / 1A / ±5ppm/℃

1kΩ: < ±0.005％ / 0.5W / ±5ppm/℃

10kΩ: < ±0.005％ / 50V / ±5ppm/℃

100kΩ: < ±0.005％ / 50V / ±5ppm/℃

1MΩ: < ±0.005％ / 50V / ±5ppm/℃

10MΩ: < ±0.005％ / 50V / ±5ppm/℃

100MΩ: < ±0.03％ / 50V / ±5ppm/℃

Calibration Time Required:

[(𝑇𝑚×𝑛𝑜1＋𝑇𝑚×𝑛𝑜2＋𝑇𝑚×𝑛𝑜3＋𝑇𝑚×𝑛𝑓＋𝑇𝑚×𝑛𝑠＋600)×10𝑅𝑎𝑛𝑔𝑒] msec

[(Tm×no1＋Tm×no2＋Tm×no3＋Tm×nf＋Tm×ns＋600)×10Range] msec

Tm: Measurement time of the calibrated instrument [SLOW]

no1～no3: Number of trials for zero-point calibration

nf: Number of trials for measuring absolute value of 10,000 counts

ns: Number of trials for measuring absolute value of 1,000 counts

Operating Conditions:

Temperature: ＋5℃ to ＋40℃

Humidity: Below 85％

Power Supply: AC 85V～265V, 50/60Hz, approximately 15VA

External Dimensions: Approx. 333(W) × 99(H) × 300(D) mm (excluding protruding parts such as rubber feet, etc.)

Weight: Approx. 3.8kg
