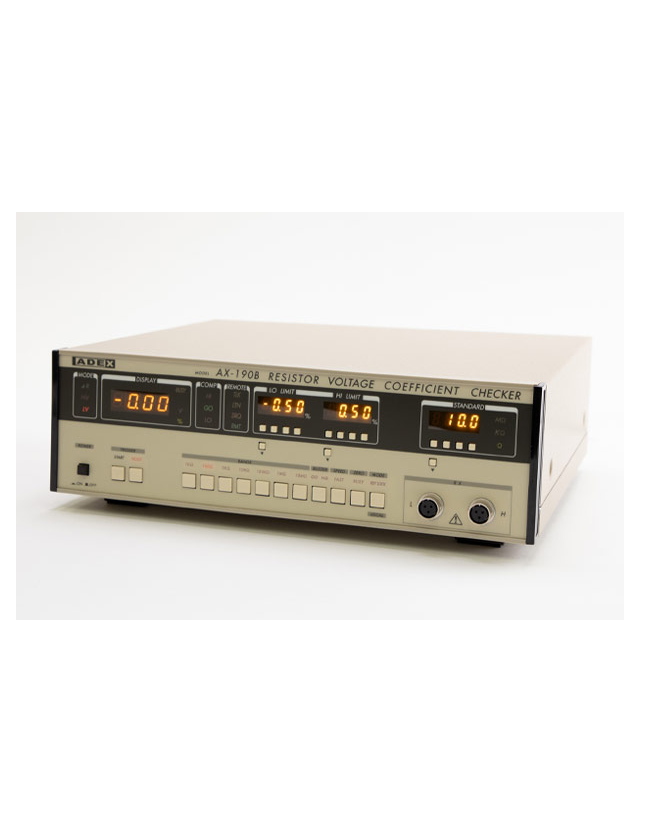

ADEX AX-190B Digital Voltage Coefficient Checker (0.24V ~ 50V)

Measuring range and Accuracy (at 23℃ ±5℃ ), 180 days after calivration [In case of 1 year, the accuracy is the double]

% Measurement Display [0.063W when setting]

Measurement range: 10Ω/ 100Ω/ 1kΩ/ 10kΩ/ 100kΩ/ 1MΩ/ 10MΩ

Measurement voltage H/L: 0.24V ~ 50V/ 0.024V~5V

Read on catalog for Standard, Measurement voltage H/L, Accuracy by High measuring Voltage, Accuracy by Low measuring Voltage

Display:±9.99％

Measuring method:4 Terminal Measurement (High Measuring Voltage and Low Measuring Voltage)

Measuring time: Read on catalog

Comparator:HI, LOW ±9.99% LO, GO, HI judgment indication+output

I/O Signal:

Built-in DC12V Photo Isolation power

Ext. HOLD input：0-12V signal or Open, Short

Ext. START input：0-12V Signal or Open, Short (Available to change the logic)

Judgment result output：Open collector output NG, TOTAL GO

Measurement end output：Open collector output 1msec. to 99msec. (1msec/step), In case of zero setting Continuous

Warm up Time: over 30 minutes

Others: By the operation panel surface, zero and full-scale calibration function

Power supply:AC100V～240V slelctable, 50/60Hz

Outer dimension:about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 4kg
