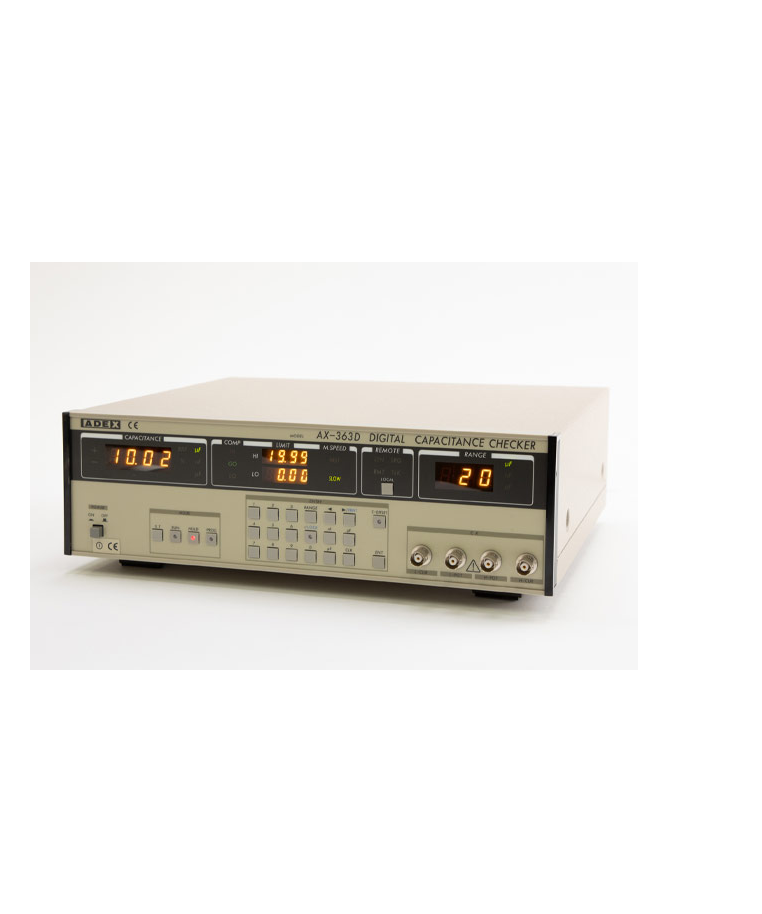

ADEX AX-363D Digital Capacitance Checker (20pF ~ 200μF)

Measuring range and Accuracy (at 23℃±5℃) *D<0.1 parallel equivalent circuit

Test Current/ Standard accuracy/ Measuring voltage

20pF/ within ±0.25％ of rdg±2digit±0.01pF/ 1V

200pF/ within ±0.2％ of rdg±2digit/ 1V

2nF/ within ±0.2％ of rdg±2digit/ 1V

20nF/ within ±0.2％ of rdg±2digit/ 1V

200nF/ within ±0.2％ of rdg±2digit/ 1V

2μF/ within ±0.2％ of rdg±2digit/ 1V

20μF/ within ±0.2％ of rdg±2digit / less than 1V

200μF/ within ±0.8％ of rdg±3digit [※within 100μF] / less than 1V

※More than 100μF is (±0.8％ of rdg±3digit)×measurement value［μF］/within 100

Measuring method:5-terminal measurement, parallel equivalent circuit

Measuring frequency: 1kHz ±0.1%, SINE wave

Stray capacity correcting range: about 20pF

Full scale and zero temp. coefficiency: within ±100ppm/℃

Measuring time:

[Remote start mode] 1.2msec.

[Free running] 5～10 times per second

Comparator set range: 1999 both HI and LO

Operation condition: [Temp.] 5*C～＋40*C[Humidity] less than 85％

Power supply:AC100V～240V selectable, 50/60Hz, about 30VA

Outer dimension: about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight: about 5.8kg
