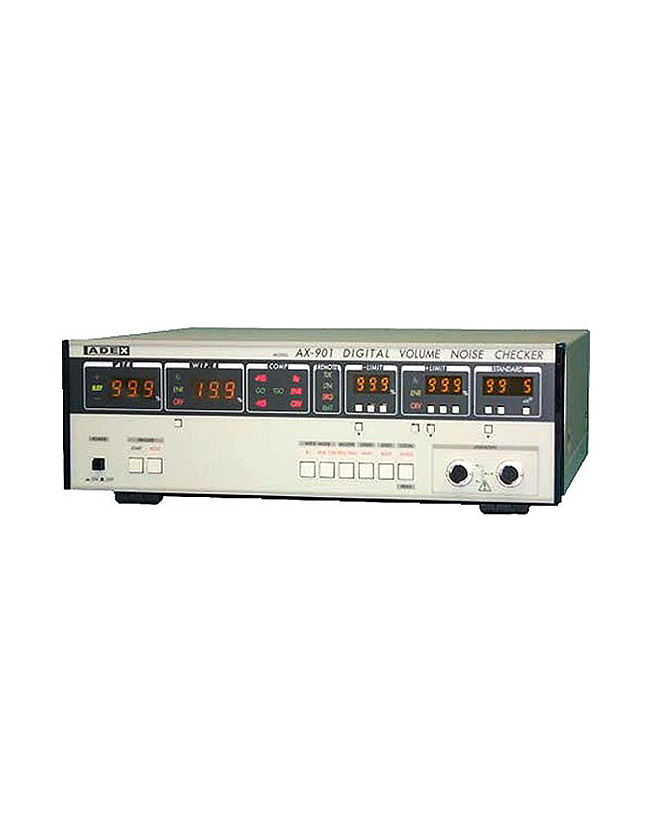

Range/ Measuring range (STD setting range)/ Measuring current/ Accuracy
100Ω/ 10Ω～ 99Ω/ 10mA～ 100mA/ ±0.2％±1digit
1kΩ/ 100Ω～ 990Ω/ 5mA～ 50mA/ ±0.2％±1digit
10kΩ/ 1kΩ～ 9.9kΩ/ 0.5mA～ 5mA/ ±0.2％±1digit
100kΩ/ 10kΩ～ 99kΩ/ 500μA～ 0.5mA/ ±0.2％±1digit
1MΩ/ 100kΩ～990kΩ/ 5μA～ 50μA/ ±0.2％±1digit
10MΩ/ 1MΩ～ 10MΩ/ 0.5μA～ 5μA/ ±0.3％±1digit
Measuring voltage: 1～10V
WIP. R Measurement (Rc/ENR/CRV)
Range: 100Ω/ 1kΩ/ 10kΩ/ 100kΩ/ 1MΩ/ 10MΩ
Measuring range: Against STANDARD 0.0%～19.9%
Accuracy:
[Rc] ±0.3%±1digit
[ENR] ±2.0%±1digit
[CRV] ±0.5%±1digit
※Under 1.0% of the measured indication value for ENR/CRN is not targetted the measuring accuracy
Measuring time
Measuring item/ External start time/ Measure by "Free run"
ΔTR/ about 23.5msec/ about 21 times per second
ΔTR✢Rc/ about 43msec/ about 15 times per second
ΔTR✢Rc✢ENR/CRV/ Above time ✢ noise measuring time ※1/ Above time ✢ noise measuring time ※2
※The above measurement time is in a case of zero setup fot DELAY TIME on each range. The setup for each range is available up to 99msec.
※1 Noise measuring time (ENR/CRV), arbitrary time to operate the wiper from the second start to the stop signal.
※2 The setup time for sample time (SPL) of parameter setup item is to be a measuring time of (ENR/CRV) Default: 2 seconds
Completion of the measurement signal (EOC) Pulse width:1msec.～199msec. [000] Continuous Output when setting
Measuring method:4-terminal measurement
Comparator setting range: ΔTR：✢LIMIT ✢0.0%～✢99.9% －LIMIT －0.0%～－99.9% Rc, ENR, CRV：✢LIMIT ✢0.0%～✢19.9%
Operation condition[Temp.]: +5*C～+40*C [Humidity] less than 85％
Power supply:AC100V～240V
selectable, 50/60Hz, about 30VA
Outer dimension: about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 4kg
