- Temperature Range: 350 ~ 2000°C (662 ~ 3632°F)
- Emissivity Adjustment: 0.100 ~ 1.000 digital on both channels when in standard mode
- Transmittance Adjustment: 0.100 ~ 1.000 digital on both channels when in standard mode
- Alpha Adjustment: Pulsar 4 Advanced: 0.050 ~ 1.000 aLP when in FMA mode on GT channel (when in FMA mode)
- Measurement Uncertainty (ε = 1, t90 = 1 s, Tamb. = 25°C): ±0.3% of reading or 3°C + 1 digit, whatever is greater
- Repeatability (ε = 1, t90 = 1 s, Tamb. = 25°C): 0.1% of full scale span
- Response Time t90: Programmable from 0.05 ~ 120 sec.
- Focusing Range: 500 mm to infinity
- Distance Ratio (Target Size): 160:1 Standard resolution, (distance/target size)
Electrical
- Power Supply:
24 V (18 ~ 30 VDC), 0.2 A maximum; 3.5 A with heater
115 VAC ±10%, 47 ~ 63 Hz; 230 VAC ±10%, 47 ~ 63 Hz
- Power Consumption: Max 90 W (with heater)
- Fusing: (F1) 1.6A, 'T' Time-Lag 5x20 mm; (F2) 1.25A, 'T' Time-Lag 5x20mm; (F3) 1A,'T' Time-Lag 5x20 mm
- Load: 0 ~ 600 Ω (mA output)
Environmental:
- Ambient Temperature Limits: -40 ~ 60°C
- Torque Spec, Lid Bolts: 5.5 nm
- Air:
View port purge: 1.4 bar min, 1.7 m3/h (@ standard conditions)
Combustion purge: 1.4 bar min, 17 m3/h (@ standard conditions)
Communication:
- Analog Output: 2 identical analog outputs 4 to 20 mA, linear, Select one of RT, GT or FF Corresponding to NAMUR NE43
- Digital Interface: RS485 addressable (half-duplex) Baud rate: 1.2 ~ 115.2 kBd
- Relay Alarm: 30 VDC / 1A max; Resistive

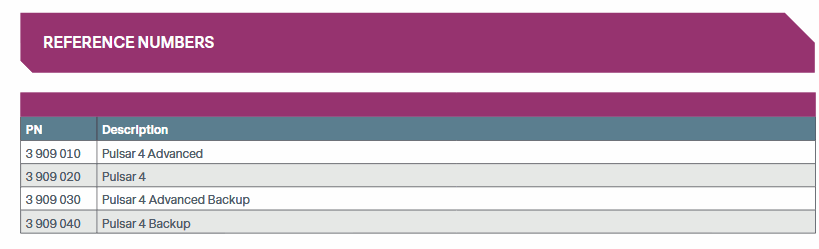

- Ordering information: Please check below PN
