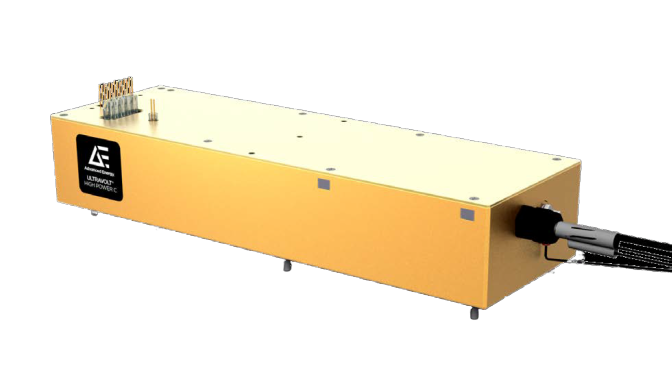

- High Voltage Output Range (Adjustable Regulated, Positive or Negative Output): 0 ~ 60000VDC
- High Voltage Outputs: Single Unipolar
- Input Voltage: Nominal, 24 VDC
- Power Output: Nominal, 60W, 125W, 250W
DC Input
- Vin (Input Voltage) Range: 23 ~ 30VDC, 23 ~ 28VDC
- Iin (Input Current, Nominal):
100% HVout, 100% LOAD: < 3.3, < 6.9, < 13.5A
100% HVout, 0% LOAD: < 1.3A
Disable/standby state: < 0.15A
DC Output
- HVout (Output Voltage): 0 ~ 50000VDC
- Iout (Output Current): (max) @ 0 ~ 100% HVout, Vin (nominal), 1, 2.08, 4.17mA
- Capacitance: Internal storage capacitance, 500pf, 500pf, 250pf
- Ripple: <1.0%
Programming and Controls
- Input Impedance:
+Output Models: 1.1 MΩ ~ GND
-Output Models: 1.1 MΩ ~ +5 Vref
- Adjust Resistance: 10 ~ 100 K (Pot. across Vref. and signal GND, wiper to adjust)
- Adjust Logic: 0 ~ 5 for +Output, +5 ~ 0 for -Output, +4.64 VDC for +output or +0.36 VDC for -output = Nominal
- Reference Voltage and Impedance: +5.00 VDC ±1%, Zout = 464Ω ±1%
- Enable/Disable: 0 ~ +0.8 disable, +2.0 ~ 30 enable (default = enable)
Stability and Regulation
- Stability:
0.01% (100 ppm) @ 100% HVout (after 30 min warmup interval)
0.02% (200 ppm) @ 100% HVout (per 8 h interval)
- Line Regulation: 0.01% (100 ppm) @ 100% HVout, 100% Pout, Vin (nominal)
- Static Load Regulation: 0.01% (100 ppm) @ 100% HVout, 0 ~ 100% LOAD
- Temperature Coefficient: 50 ppm/°C (Standard configuration over operating temperature range)
- Power-On Rise Time: Application dependent (See Rise Time / Capacitor Charging Equations)
Environmental
- Operating Temperature Range: -40 ~ 65°C (-40 ~ 149°F) bottom case temperature
- Storage: -55 ~ 105°C (-67 ~ 222°F) case temperature
- Humidity: 0 ~ 95% RH, non-condensing
- Altitude: Sea level to 3000 m (10,000 ft)
- Certifications: UL/cUL recognized, IEC-60950-1, CE mark (LVD and RoHS)
Volumes and Weights:
- Volume (Module body only): 2621.9cm3, 160.0in3
- Weight (Standard Configuration): 4536g, 160.0oz
- Options & Accessories:
Mechanical Mounting: Enable PCB or chassis mounts with brackets and mounting accessories
Temperature Stability: Utilize temperature coefficients of 25 ppm/⁰C to improve the stability of high voltage output
Arc Control: Detect and quench arcing on the high voltage output
Heat Sinks: Attach finned-aluminum heat sinks to help dissipate heat in challenging environmental conditions
