Advanced Energy IGAR 6 Advanced Metal Applications Pyrometer (100 ~ 2000°C)

- Temperature Range:
1-color and Smart mode: 100 ~ 2000°C (212 ~ 3632°F)
2-color (ratio) mode: 250 ~ 2000°C (482 ~ 3632°F)
- Spectral Ranges:
Channel 1: 1.5 ~ 1.6 μm
Channel 2: 2.0 ~ 2.5 μm
- Resolution:
0.1°C or 0.2°F at interface
< 0.0015% of selected sub range at analog output, min. 0.1°C, 16 bit; 1°C or 1°F on display
- Emissivity ε: 0.050 ~ 1.000 in steps of 1/1000 (1-color mode)
- Measurement Uncertainty (κ = 1, t90 = 1 S, Tamb. = 25 °C):
< 1500°C: 0.4% of reading in °C + 2°C
> 1500°C: 0.8% of reading in °C
- Repeatability (κ = 1, t90 = 1 S, Tamb. = 25 °C): 0.2% of reading in °C + 1°C
Optical:
- Sighting: Built-in laser aiming light (max. power level < 1 mW, λ = 630 to 680 nm, CDRH class II) or through-lens sighting
- Optics: Manually focusable from rear cover measuring distance a = 210 ~ 5000 mm
- Distance Ratio: Approx. 100:1
Electrical
- Power Supply:24 VDC ±25%, ripple must be less than 50 mV
- Power Consumption: Approximately 3 W (including laser)
Environmental
- Ambient Temperature: 0 ~ 65°C (32 ~ 149°F) at housing
- Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
- Weight: 0.6 kg
Interface and Communication:
- Connection: 12-pin connector
- Analog Output: Adjustable 0 ~ 20 mA or 4 ~ 20 mA, linear (via digital interface)
- Response Time t90: 2 ms
- Scope of Delivery: Pyrometer, PC adjustment and evaluation software InfraWin, works certificate, and operating instruction.

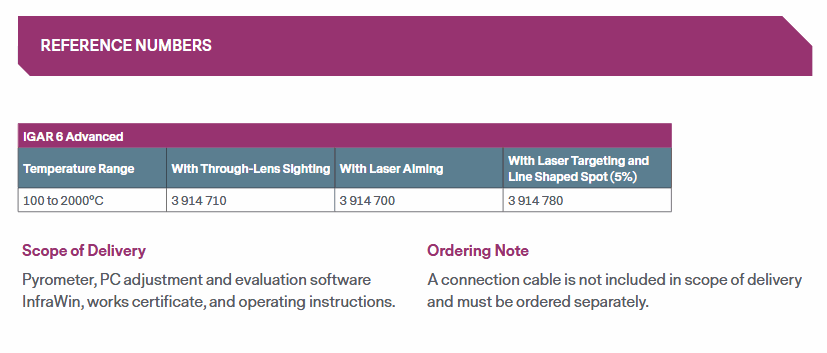

- Ordering information: Please check below PN
