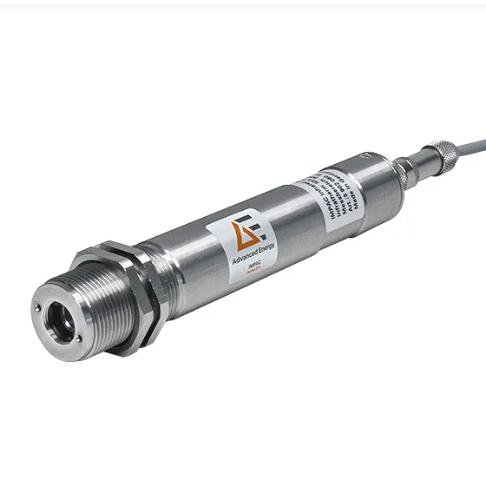

Advanced Energy IS 310 Metal Applications Pyrometer (650 ~ 2500°C)

- Temperature Range:
650 ~ 1800°C (1202 ~ 3272°F) (MB 18)
800 ~ 2300°C (1472 ~ 4172°F) (MB 23)
1150 ~ 2500°C (2102 ~ 4532°F) (MB 25)
- Optics:
3 fixed optics:
a = 250 mm, 600 mm, and 1400 mm
- Spectral Ranges: 0.8 ~ 1.1 μm
- Detector: Si photo diode
- Measurement Uncertainty (e = 1, Tamb. = 23°C):
≤ 1500°C: 0.8% of measured value + 1°C
> 1500°C: 1% of measured value + 1°C
- Repeatability (e = 1, Tamb. = 23°C): 0.3% of measured value
- Emissivity ε: 0.2 ~ 1; adjustable
- Sighting: LED targeting light
- Analog Output: 4 ~ 20 mA, load independent current, linear temperature output
- Response Time t90: 10 ms
Electrical:
- Power Supply: 24 VDC ± 25%, ripple 500 mV; LED targeting light: 5 ~ 30 VDC (I ≤ 30 mA)
- Max Load:
500 Ω @ 24 V power supply
Max 200 Ω at 18 V
Max 800 Ω at 30 V
- Connection Cable: 2 ~ 30 m length, connection via connector
Environmental
- Protection system: IP65 (according to DIN 40 050)
- Ambient Temperature: 0 ~ 70°C (32 ~ 158°F)
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Weight: 275 g (≈0.606 lb)
- CE Label: According to EU directives about electromagnetical immunity
- Scope of Delivery: Instrument, works certificate, and operation manual.
