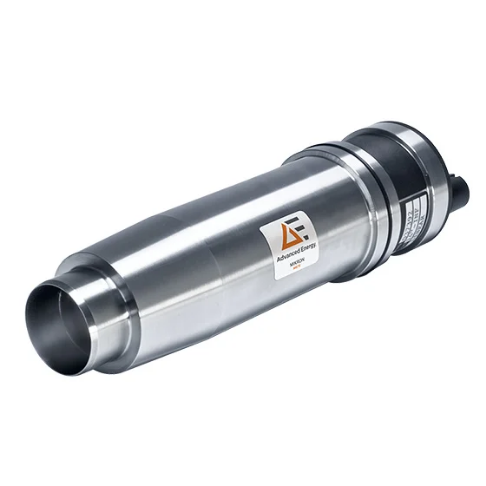

Advanced Energy M67S Metal Applications Pyrometer (0 ~ 2200°C)

- Temperature Range: 0 ~ 2200°C
- Resolution: ±0.1% of full scale span (FSS)
- Emissivity ε: Digital setting 0.10 ~ 0.99 with 0.01 step
- Measurement Uncertainty: ±0.50% of full scale or 1°C, whichever is greater
- Repeatability: ±0.2% of full scale span
Optical:
- 2 focusable optics:
350 mm ~ ∞
150 ~ 350 mm
- Sighting: Eyepiece: Diopter type
Electrical:
- Power Supply: 24 VDC (18 ~ 40 VDC) nominal
- Power Consumption: ≈0.4 W at 20 mA
- Load Resistance Max:
400 ohms for 24 VDC input voltage
1200 ohms for 40 VDC input voltage
Environmental
- Protection system: NEMA 4 with protective/cooling jacket
- Ambient Temperature: 0 ~ 60°C without cooling
- Storage Temperature: -30 ~ 80°C
- Relative Humidity: 90%, Non-condensing conditions
- Weight: 0.90 kg
- Housing: Stainless steel
- Dimensions: 50 mm diameter x 203 mm long
- CE Label: According to EU directives about electromagnetical immunity
Interface:
- Connection: Four terminal screws: two for signal, one for GND, and one spare
- Parameters: Emissivity from rear panel with digital push button switch
Communication
- Analog Output: 4 ~ 20 mA linear standard
- Response Time t95: 50 ms for spectral response 0.78 ~ 1.06 μm and 1.0 ~ 1.6 μm, for all others: 120 ms
