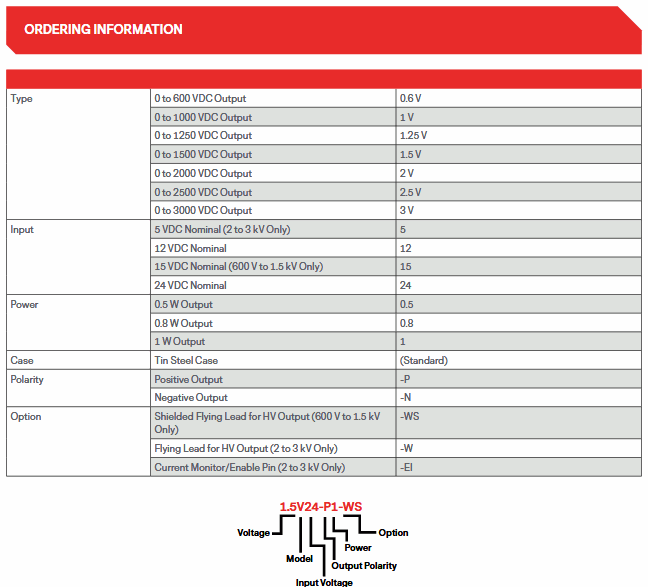

- Input Voltage Vin (Pins 1 and 2): 5 ±0.5VDC (2 ~ 3 kV only) 12 ±1 or 24 ±2VDC
- Input Voltage: 5VDC
Input Current: No load: 55mA, full load: 450mA
- Input Voltage: 12VDC
Input Current: No load: 45mA, full load: 200mA
- Input Voltage: 24VDC
Input Current: No load: 35mA, full load: 160mA
- Polarity: Fixed positive or fixed negative
- Output Voltage: 0 ~ 2000VDC
- Output Power: 0.5W, 0.8W, 1W
- Output Current: 0.25mA, 0.40mA, 0.50mA
- HV Setting: 10 ~ 100K (potentiometer across vRef. and signal ground, wiper to adjust)
- Load Voltage Regulation: < 0.01%VDC of full output voltage for no load to full load
- Line Voltage Regulation: < 0.01%VDC of full output voltage over specified input voltage range
- Residual Ripple: < 0.01%V pk to pk at full load
- Temperature Coefficient: 100 ppm/°C for the max output voltage after starting and over temperature range 0 ~ 50°C
- Output Voltage Monitor:
12 ~ 24 V input only: 0 ~ +5 V ±2%
5 V inputs: 0 ~ +2.5 V ±2%
- Reference Voltage:
12 ~ 24 V input only: 5 V ±1%, TC: 100 ppm/°C, max output current: 1 mA
5 V inputs: 2.5 V ±1%, TC: 100 ppm/°C, max output current: 1 mA
- Operating Temperature: -10 ~ +65°C, full load, max Eout, case temp.
- Storage Temperature: -20 ~ +70°C
- Safeguards: Arc and short circuit protection
- Options: Flying lead for HV output

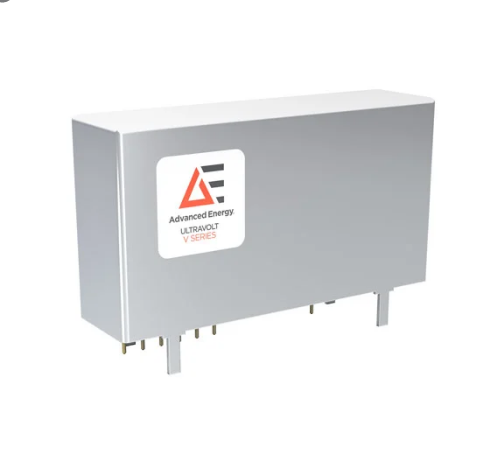

- Construction:
Steel, tin-plated, thickness 0.5 mm (0.02")
Fully potted in silicone RTV
- Volume: 13.8 cc (0.84 in3)
- Weight: 35 g (1.23 oz)
Tolerance:
- Overall: ±0.76 mm (0.0030")
- Pin to Pin: ±0.38 mm (0.015")
- Tabs Location: ±0.51 mm (0.020")
- Tab to Tab: ±0.25 mm (0.010")
- Interface: Analog (positive or negative polarity), -EI interface option available
