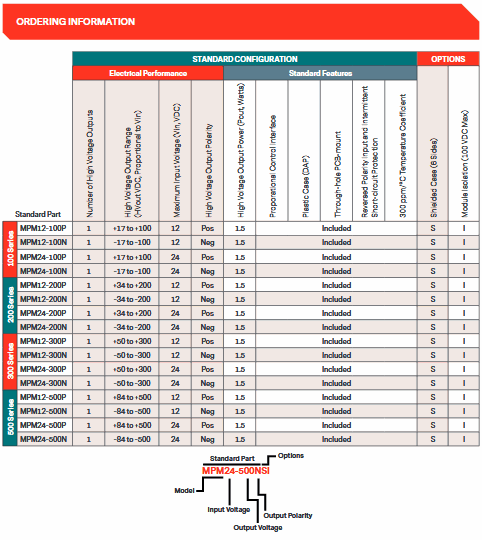

- High Voltage Output Range (Proportional, Positive or Negative): 17 ~ 100VDC
- High Voltage Outputs: Single
- Input Voltage (VDC, Nominal): 12VDC, 24VDC
- Power Output (Watts, Nominal): 1.5W
DC Input
- Vin (Input Voltage) Range: positive polarity only, 0 ~ 12VDC, 0 ~ 24VDC
- Vin (Nominal): 2 ~ 12VDC, 4 ~ 24VDC
- lin (Input Current, Nominal):
100% HVout, 100% LOAD: < 0.25A, < 0.13A
100% HVout, 0% LOAD: < 0.04A
DC Output
- HVout (Output Voltage):
positive polarity models = +HVout: +17 ~ +100VDC
negative polarity models = -HVout: -17 ~ -100VDC
- Iout (Output Current): max @ 0 ~ 100% HVout, Vin (nominal): 15mA
- Pout (Output Power): max, 1.5W
- Ripple:
< 0.5% (0.05% With S option)
< 5000ppm (< 500ppm with S option)
< 0.5Vpp (< 0.25Vpp with S option)
Stability and Regulation
- Stability:
0.1% (1000 ppm) @ 100% HV out (after 30 min warmup interval)
0.1% (1000 ppm) @ 100% HV out (per 8 h interval)
- Line Regulation: Unregulated (proportional control)
- Static Load Regulation: Typically < 10% @ 100% HV out, 0 ~ 100% LOAD. Max < 20%
- Temperature Coefficient: 300 ppm/°C (over operating temperature range)
- Power-On Rise Time:
< 50 msec @ 100% LOAD, < 50 msec @ 0% LOAD
Contact factory for other options.
Environmental
- Operating Temperature Range: -10 ~ 60°C (14 ~ 140°F) ambient temperature
- Storage: -40 ~ 85°F (-40 ~ 185°F) ambient temperature
- Humidity: 0 ~ 95% RH, non-condensing
- Altitude: Sea level to 2000 m (6500 ft)
- Certifications: CE mark (LVD and RoHS)
Dimensions: (Standard)
- Overall Length: 38.1mm, 1.50in
- Overall Width: 38.1mm, 1.50in
- Case Height (Max): 20.1mm, 0.79in
Volumes and Weights (standard)
- Volume (Module Body Only): 29.1cm3, 1.8in3
- Weight: 60g, 2.1oz
Options and accessories:
- Shields: Six-sided, tin-plated case and mating PCB for additional protection from external radiated emissions
- Isolation: Up ~ 100 VDC maximum between ground and high voltage return (HVret)
