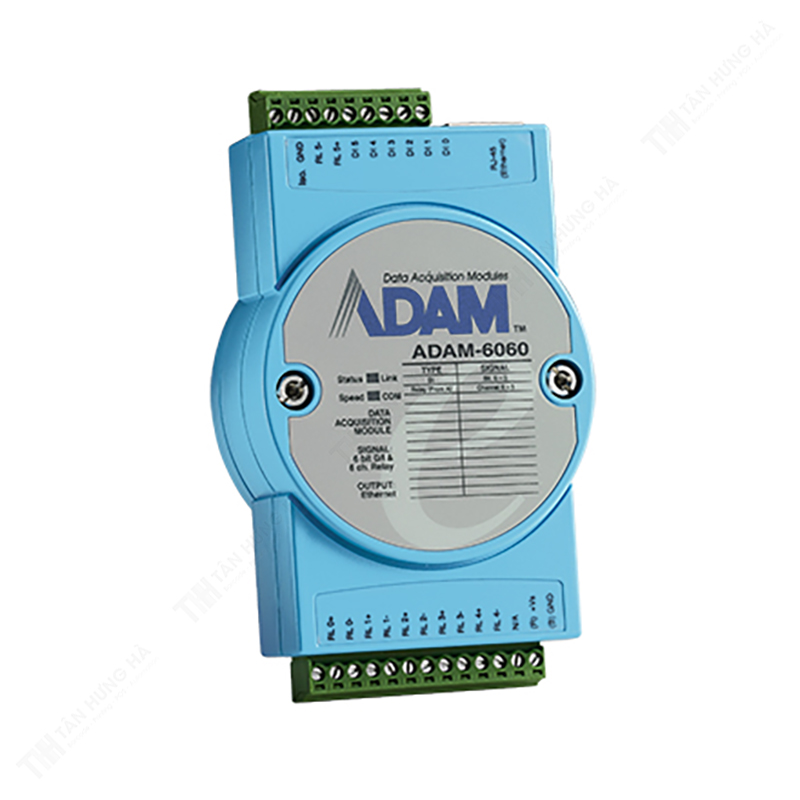

Advantech ADAM-6060 Ethernet I/O Modules (6-ch DI and 6-ch Relay Modbus TCP Module)

Digital Input (DI): 6 channels, supports Dry Contact (0: GND, 1: open) and Wet Contact (0: 0–3 VDC, 1: 10–30 VDC)

Relay Output (RL): 6 channels, contact rating: 1A @ 30 VDC, 0.5A @ 120 VAC, Form A relay type

Communication: Ethernet (1 x RJ45)

Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, MQTT, ASCII

Isolation Voltage: 2000 VDC

Power Supply: 10–30 VDC

Operating Temperature: -40 – 70°C

Maximum Input Frequency: 3 kHz (Counter/Encoder Input)

Connections: 1 x RJ45, 1 x 13-pin screw terminal, 1 x 9-pin screw terminal
