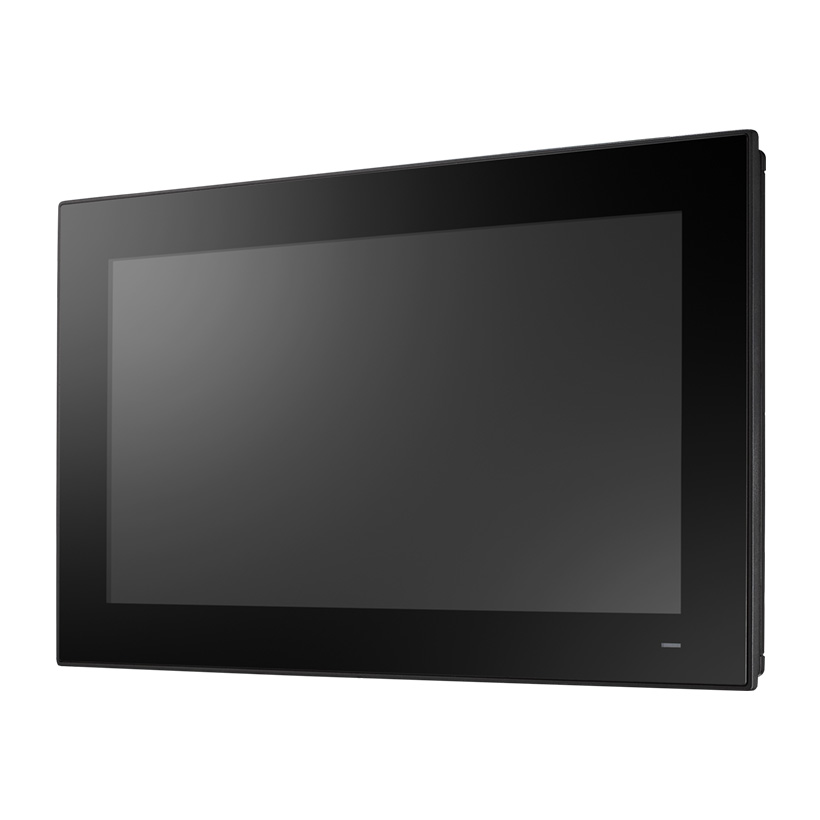

Advantech PPC-324W TGL Fanless Panel PC with Intel Core i7 Processor (i7; LCD 23.8 inch)

CPU: i3-1115G4E/ i5-1145G7E/ i7-1185G7E

Cores: Quad Core

Frequency: 1.8 GHz; 4.4 GHz with turbo boost

Cache: 12 MB

TDP: 15W

Memory: 2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2)

Storage: 1 x 2.5 SATA bay; 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1

Network (LAN): 1 x Intel I219LM controller; Speed: 10M / 100M / 1000M ; 1 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2500M

I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS); 3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal), 1 x Type C (USB only); 1 x HDMI1.4; 1 x TPM 2.0; 1 x Line out

Speaker: 2 x 1W

Expansion: 1 x M.2 2230 E-key for wireless card

Watchdog Timer: 255 timer levels, set up by software

Dimensions: 595.9 x 347.1 x 61.5 mm (23.5 x 14.7 x 2.4 inch)

Weight: 8.6kg (18.96lb)

OS Support: Microsoft® Windows 10 IOT LTSC(64-bit), Win 11, Linux

Input Voltage: 12 ~ 30 VDC

Power Consumption: 80W (Burn-in test 8.1 in Windows 10 64-bit)

Display Type: 23.8 inch LCD (LED backlight)

Resolution: 1920 x 1080

Viewing Angle: 89 (left), 89 (right), 89 (up), 89 (down)

Backlight Lifetime: 50,000 hr (min.)

Luminance (cd/m2): 350

Contrast Ratio: 1000

Backlight Lifetime: 30,000 hr (min.)

Light Transmission: ≥88%

Controller: USB interface

Operating Temperature: -10 ~ 50 °C (14~122 °F)

Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity: 95% @ 40 °C (non-condensing)

Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC: CE, FCC Class B, BSMI, VCCI, UKCA

Safety: CB, UL, CCC, UKCA

Front Panel Protection: IP66 compliant
