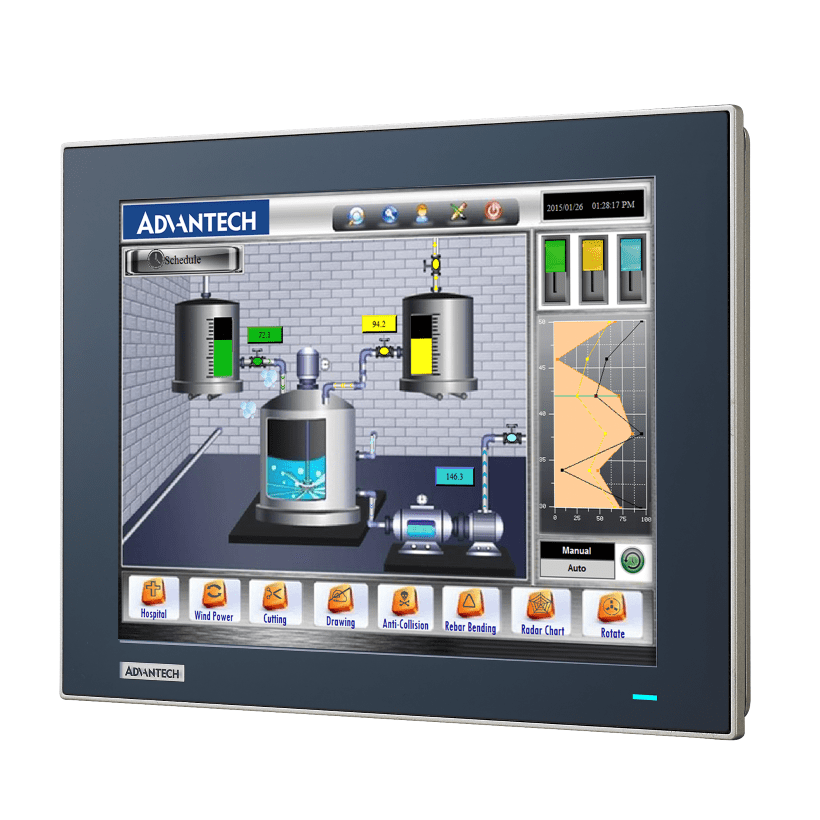

Advantech TPC-312 Panel PCs (12.1 inch)

Ingress Protection: IP66 mặt trước

Anti vibration: 1 Grms, random

Operational humidity: 10~95% RH (non-condensing)

BIOS: AMI UEFI

CPU: 8th Gen. Intel® Core™ i3-8145UE 2.20GHz Dual-Core

I/O: 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot

LAN: 1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps

Memory: 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot

OS support: Microsoft® Windows 10 LTSC, Linux, Android

Power Consumption: 41.06 W @ 24 VDC

Storage: 1 x SATA M.2 SSD slot (2280 M-Key); 1 x 2.5\" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key

Watchdog timer: 15~255 s

I/O Interface - Audio: Line-Out, Microphone

I/O interface - Display: 1 x DP

Expansion: 1 x Full-size mPCIe Slot, 1 x SIM card Slot

Serial ports: 2 x RS-232/422/485

LCD display - Backlight Life (hrs): 50,000

Display size: 12.1 inch

Luminance (cd/m2): 300

Max. Resolution: 1024 x 768 px

Viewing Angle (H/V°): 178/ 178

Dimension (W x H x D): 311.8 x 238 x 67 mm

Enclosure: Die-cast aluminum alloy

Mounting: Stand, Wall, VESA, Panel

Weight (NET): 4.1 kg (9.04 lb)

Touch screen - touch type: 5-wire resistive
