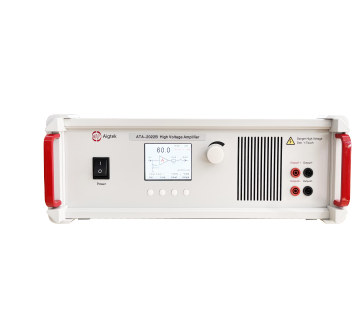

Aigtek ATA-2022B High Voltage Power Amplifier (DC~1MHz, 200Vp-p)

No. Of Channel: 2

Form of Output: Single Ended Output

Bandwidth（-3dB）: DC~1MHz

Max. Output Voltage: 200Vp-p

Range of Output Voltage: Range1:+40V~-160V

Range2:+100V~-100V

Range3:+160V~-40V

Max. Output Current: 250mAp（DC~50Hz）

500mAp（＞50Hz）

Max. Output Power: 50Wp

Fuse: 2A/250V

Voltage Gain: x0~60（0.1 step/1 step）

Upper Limit of Load RL: ≥395Ω（DC~50Hz）

≥195Ω（＞50Hz）

DC Offset: ±160V（0.1V step/1V step）

Voltage Range of DC offset: Range1:+40V~-160V

Range2:+100V~-100V

Range3:+160V~-40V

Output Resistance: 5Ω /50Ω ((customizable）

Input Resistance: 50Ω / 10kΩ

Input Amplitude: 0~10Vp-pMAX

Output Voltage Error: ≤±3%FS@1kHz

Voltage Monitor: 20mV/V

Current Monitor: 2V/A

Slew Rate: ≥445V/μs

THD: ≤0.1%@1kHz，100Vp-p

Zero Drift of Output voltage: ≤±0.1V

Signal-noise Ratio (SNR): ≥80dB

Output Connector: 4mm banana connector

Protection: Over current protection

Signal Ground: Connected to the case and power line

Supply Voltage: AC110~240V,50/60Hz

Operating Temperature: 0°C ~ 45°C

Storage Temperature: -20°C ~ 50°C

Humidity: ≤80% RH，no condensation

Size : 365*163*365mm (w * h * d)
