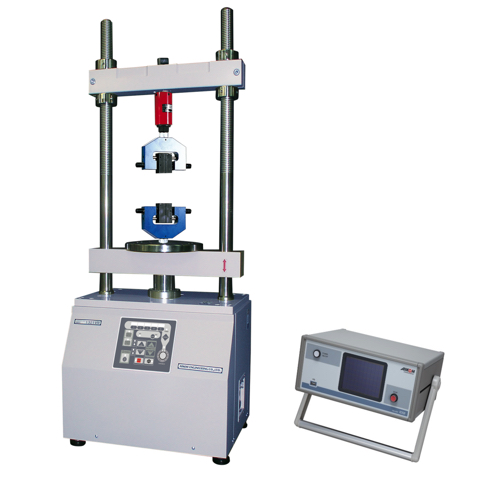

Max. force: 20kN (2000kgf)
Force accuracy: Depends on the load cell used.
Force measuring amplifier: MODEL-1018
Controller: Built in
Test speed: 2～40mm/min
Speed changing: 5 steps or stepless
Stroke: 150mm
Distance between test center and column: 180mm
Table size: φ250mm, center M20 x 1.5
Drive motor: DC brushless motor
Detector: None
Dimensions: W510×H1220×D400mm
Stand mass: Approx. 120 kg
Amplifier mass: Approx. 5.2 kg
Power supply: Single phase, 100 VAC – 240 VAC, 5A
Standard set: Tester, force measuring amplifier MODEL-1018, load cell 1 piece
Options: Additional load cell, jig/fixture, software, column extension, safety cover
