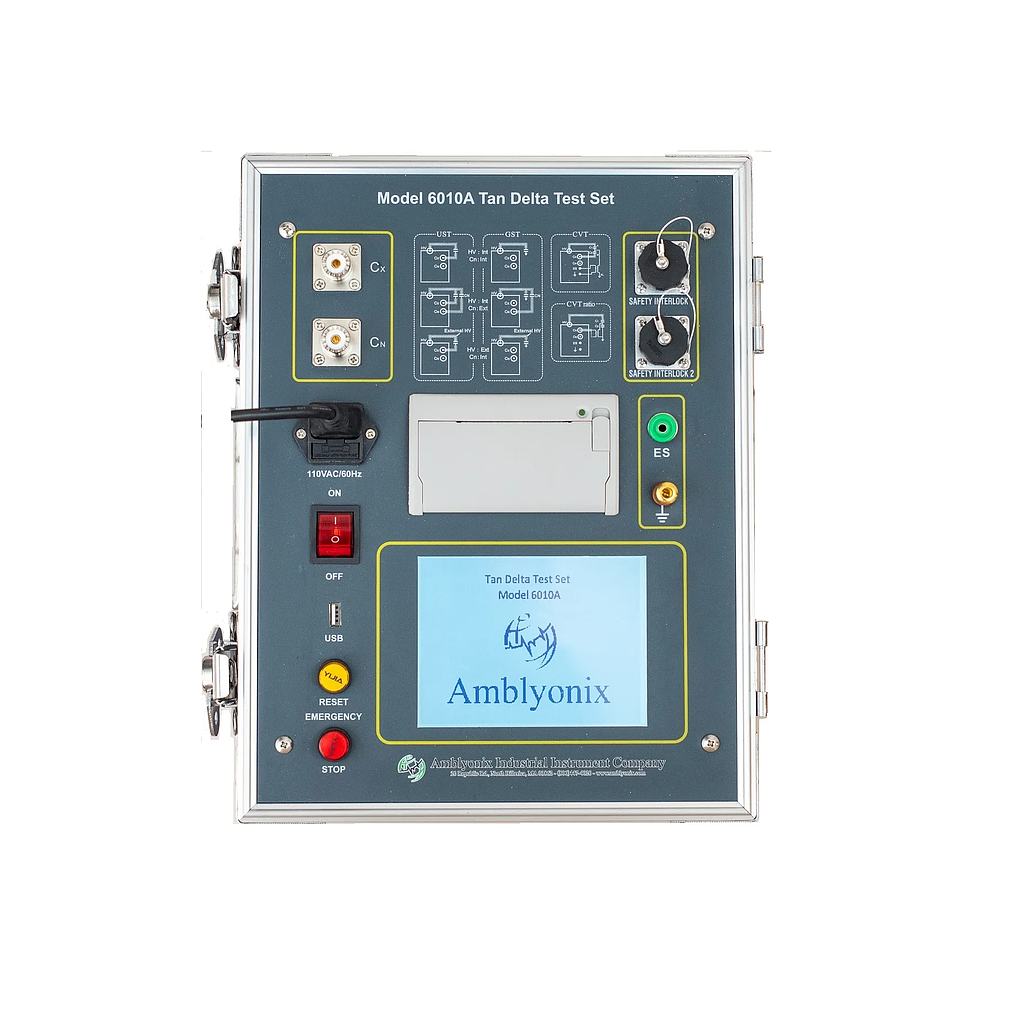

Amblyonix 6010A Capacitance and Tan/Delta Testing Set

Automatically Displays: Capacitance, watt loss, power factor, test current and active power.

Capacitance Range:

10kV <30,000pF

5kV <75,000pF

1kV <150,000pF

Accuracy: tan/delta ± (0.1% rdg + 0.4 % range) Cx: ± (1%rdg + 1.00pF)

Maximum Resolution: 0.0001pF

Tan/Delta Range: 0.001% resolution

Tan/Delta Test Current Range: 10uA-1A

Internal HV selectable voltage range: 0.1-10kV

Maximum Output Current: 200mA

Selectable Test Frequencies: 50Hz, 60Hz

Automatic, Dual Variable Frequencies:

45/55Hz, 47.5/52.5Hz, 57.5/62.5Hz, 55/65Hz

Power Supply: 120VAC 60Hz

Operating Environment: 148F to 1048F @≤90%RH
