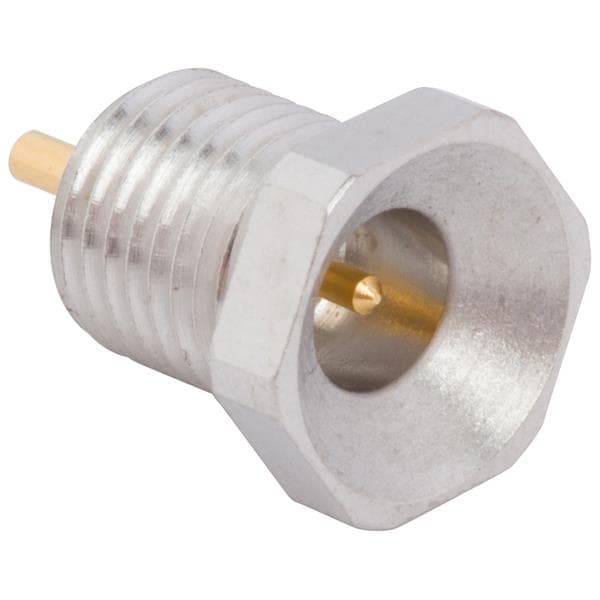

Gender: Jack (Socket)
Polarity: Standard
Frequency: DC to 10 GHz
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: HD-EFI
Body Style: Straight
Body Finish: White Bronze
Orientation: Straight
Unit Weight: 1.500 g
Body Material: Brass
Mating Cycles: 200 Cycle
Insertion Loss: 0.1 dB
Mounting Style: Panel Mount, Threaded
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 10 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Push On
Contact Termination: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 45 C
