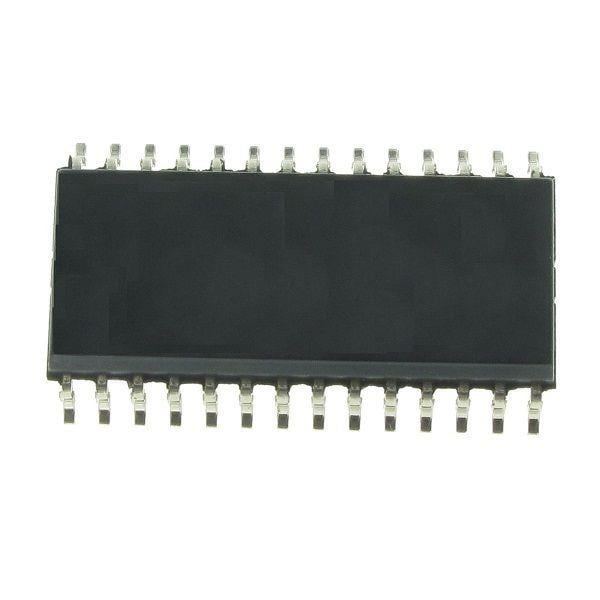

Analog Devices DG506ACWI+ Multiplexers Monolithic CMOS Analog Multiplexers

Width: 7.6 mm (Max)

Height: 2.35 mm (Max)

Length: 18.1 mm (Max)

Supply Type: Dual Supply

Unit Weight: 773 mg

Configuration: 1 x 16:1

On Time - Max: 1 us

Mounting Style: SMD/SMT

Off Time - Max: 400 ns

Number of Channels: 16 Channel

On Resistance - Max: 450 Ohms

Supply Current - Max: 300 uA

Pd - Power Dissipation: 1 W

Propagation Delay Time: 600 ns

Operating Supply Voltage: 4.5 V to 18 V

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: +/- 4.5 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
