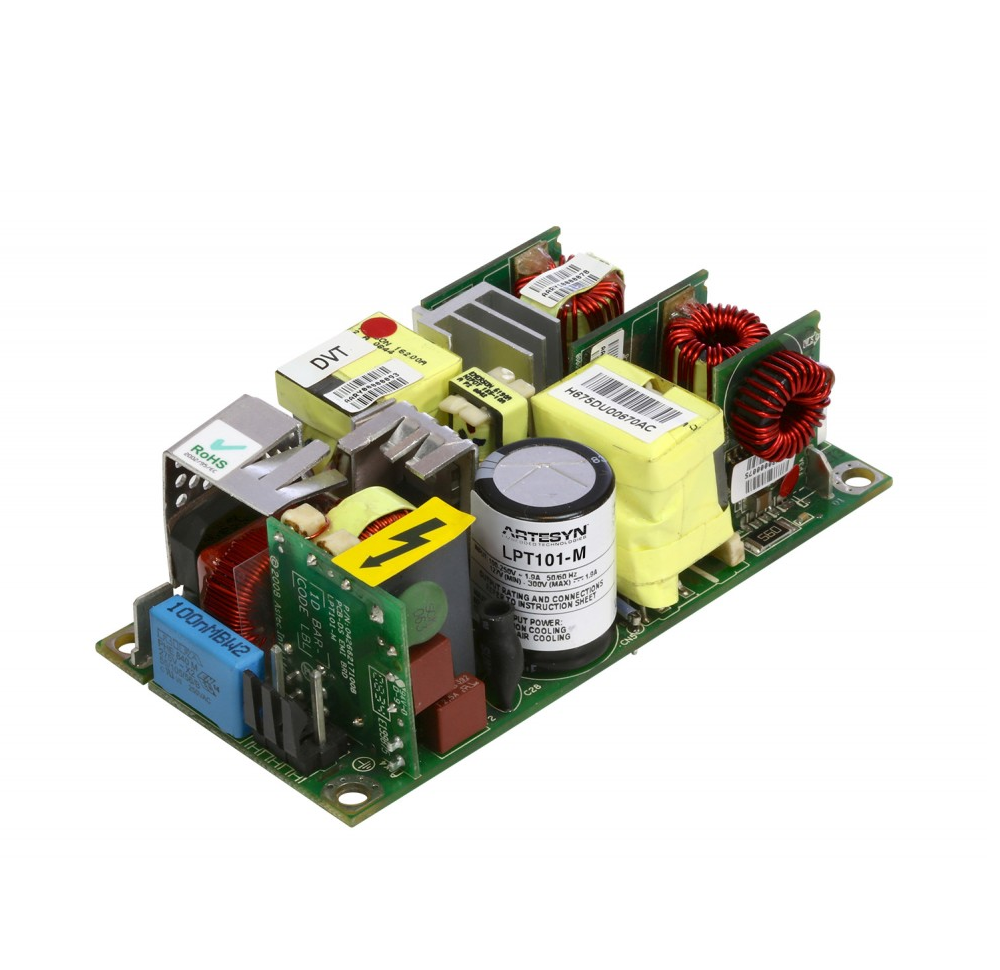

Input
Input range: 90 - 264 Vac; 127 - 300 Vdc
Frequency: 47 - 63 Hz
Inrush current: 50 A max., cold start @ 25°C
Efficiency: 82% typical at full load
EMI/RFI: FCC Class B conducted; CISPR22 Class B conducted; EN55022 Class B conducted; VDE0878PT3 Class B conducted
Safety ground leakage current: 275 µA @ 50/60 Hz, 264 Vac input
Output
Maximum power: 130 W with 200 LFM forced air
Adjustment range: All outputs adjustable: -20%, +10%, except for +24V output on LPT104-M which will be -10%, +20% and 3.3 V output on the LPT101- M +10%, -15%
Hold-up time: 10 ms @ 130 W load, 120 Vac input
Overload protection: Short circuit protection on all outputs. Case overload protected @ 110 - 160% above rating for V1 & V2, 150 - 250% for V3
Overvoltage protection: 15 - 35% above nominal output
Logical Control
Power failure: Active LowTTL logic signal goes high 100 - 500 msec after main output; it goes low at least 6 msec before loss of regulation
Remote sense: Compensates for 0.5 V lead drop min. Will operate without remote sense connected. Reverse connection protected
Environmental Specifications
Operating temperature: 0°C to 50°C ambient derate each output as 2.5% per degree from 50 °C to 70 °C. -20°C start up
Storage temperature: -40°C to +85°C
Electromagnetic susceptibility: Designed to meet EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3
Humidity: Operating; non-condensing 10% to 90% RH, non-operating, non-condensing 10% - 95%
Vibration: IEC68-2-6 to the levels of IEC721-3-2
MTBF calculated: 583.000 hours at full load and 25 °C ambient conditions. 230 Vac input, Bellcore
Ordering Information
Output: Triple
1.
Output Voltage: +3.3 V
Minimum Load: 0 A
Maximum Load with 30CFM Forced Air: 18 A
Peak Load: 20 A
Peak Load: ± 2%
Ripple P/P (PARD): 50 mV
2.
Output Voltage: +5 V
Minimum Load: 0 A
Maximum Load with 30CFM Forced Air: 9 A
Peak Load: 10 A
Peak Load: ± 5%
Ripple P/P (PARD): 50 mV
3.
Output Voltage: +12 V
Minimum Load: 0 A
Maximum Load with 30CFM Forced Air: 2.3 A
Peak Load: 2.3 A
Peak Load: ± 5%
Ripple P/P (PARD): 120 mV
