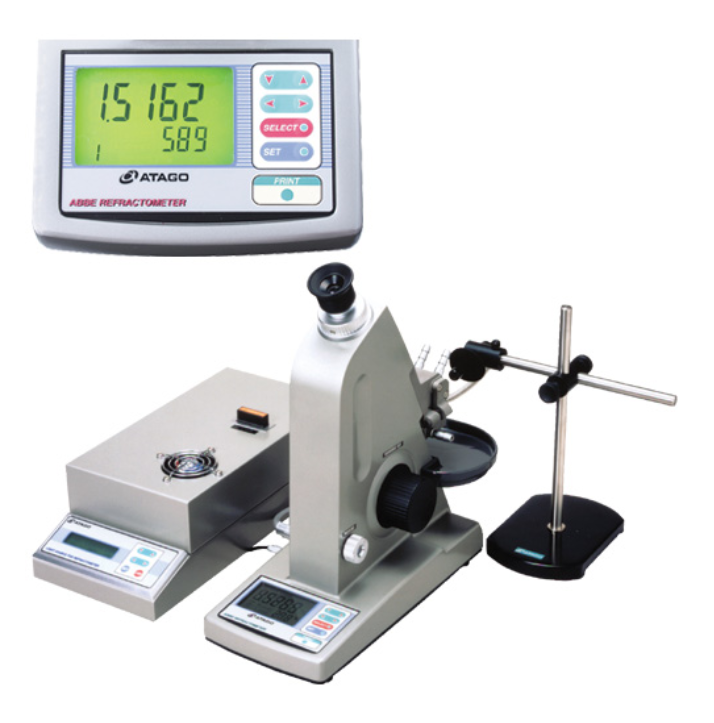

ATAGO DR-M2 Multi-Wavelength Abbe Refractometer (450 ~ 1.100nm)

Refractive index 1.2743 to 1.6840 (Wavelength 1,100nm)

Accuracy: Refractive index : ±0.0002

(With test piece at 500 to 650nm)

Minimum Indication: Refractive index : 0.0001

Abbe number : 0.1

Measurement Temp.: 5 to 50ﾟC

(With circulating constant water bath)

Display Panel: LCD

Light source: Halogen lamp

Output: For printer, DP-AD (B) (Optional)

Wavelength Range: From 450 to 1100nm (with interference filters)

(For measurement at wavelengths ranging from 681 to 1100nm, the Near Infrared Ray Viewer (Optional is required)

Dimensions & Weight: 13×29×31cm, 6.0kg (Refractometer)

15×33×11cm, 3.2kg (Light source unit)

Datasheet
