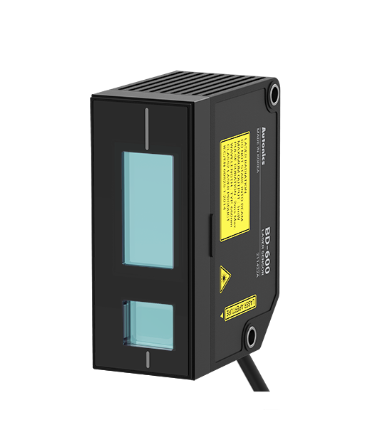

Autonics BD-600 Laser Displacement Sensors (250~1000mm, ± 0.25% of F.S. (250 ~ 600 mm), ± 0.5% of F.S. (600 ~ 1,000 mm))

Spot diameter:

Near (250mm): ≈ 1,140×1,175 ㎛

Reference (600mm): ≈ 860×830 ㎛

Far (1,000mm): ≈ 800×775 ㎛

Resolution: 40 ㎛

Reference distance: 600mm

Max. measurement range: 250 ~ 1,000 mm

Linearity:

± 0.25% of F.S. (250 ~ 600 mm)

± 0.5% of F.S. (600 ~ 1,000 mm)

Datasheet
