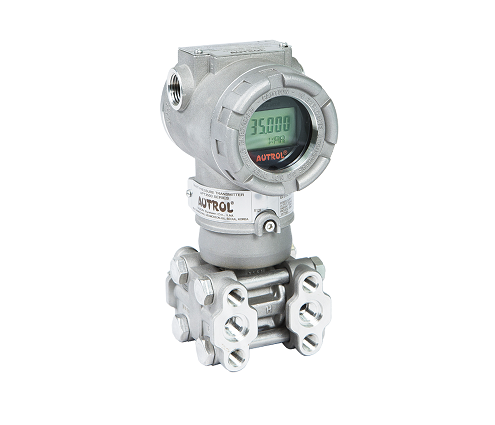

- Type Pressure: Differential(DPIT), Gauge/ Absolute(PIT), Level(LIT), High Static Pressure, Flow Pressure(FIT)
- Application Pressure, Flow, Level measurement for Oil & Gas, Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants and Refinary
Sensor Range: 0 to Max 14,000 KPa
Accuracy: ± 0.04%
Calibrated Span: 0.0625 Kpa to Max 14,000 KPa
Max. Working Pressure: 25 MPa / 3,625 psi
Advantage: Bottom direction process connection for flow & DPIT
Protocol: Digital Communication, HART 7, Foundation Fieldbus
Trim ability: Zero, DAC, FULL
Power supply & Load Requirement: 250 to 550 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons: Zero & Span 2 buttons for device configuration
Process Temp. limit: -40 to 120℃ ( -104 to 248℉ )
Range Abilitiy: 100:1
Stability: ±0.125% URL for 60 months
3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode
Certificate: SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS, KCs, IP66/67, NEMA 4X
