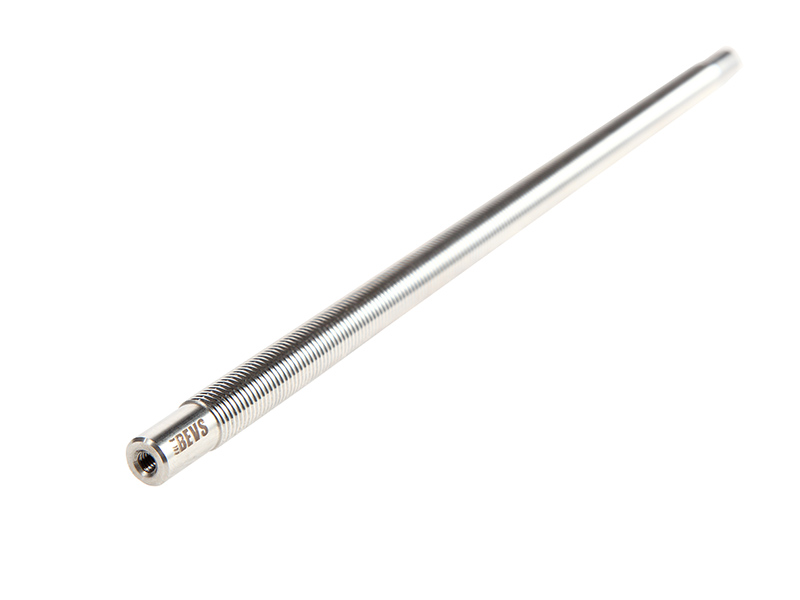

Bevs BEVS 320/4...200 Bar Coater (320mm)

Excellent stainless steel bar : Ø10mm

Film width: 320mm

Total length: 240 or 400mm

Wet Film Thickness: 4-6-8-10-12-15-20-25-30-40-50-60-80-100-120-200μm

Introduction:

BEVS bar applicator is a fully new generation technology against traditional wire bar, ideal for the application of inks and coatings onto flexible materials such as paper, card, textiles, leather, automatic film applicator and etc.The wet film thickness applied is controlled by the area of the groove between the coils of bar,the minimum thickness can be reach to 4μm.

Features:

Not peel off

Easy to clean

Apply to 4μm

Order Information:

BEVS 200/4...200

Film Width: 200mm

BEVS 320/4...200

Film Width: 320mm

Please specify wet film thickness when ordering.
