Manuafacturer: BK PRECISION

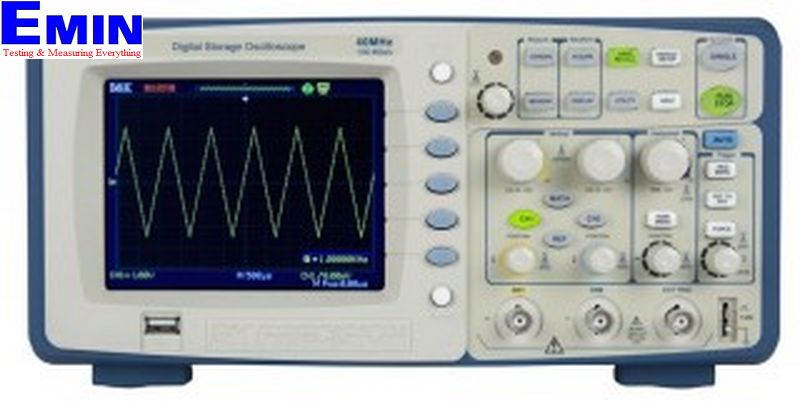

Model : 2532B
Warranty : 12 month
Bandwidth:40 MHz
Real Time Sampling Rate: Single Channel: 500 MSa/s, Dual Channel: 250 MSa/s
Channels: 2
Record Length: Max 32,000 points
Vertical Resolution: 8 bit
Vertical Sensitivity: 2 mV/div -10 V/div(1-2-5 order)
Horizontal Scan Range: 10 ns/DIV - 50 s/DIV
Maximum Input Voltage: 400 V (DC+AC pk-pk, 1 MΩ, X10), CAT I
I/O Interface:USB, RS-232
Trigger: Edge, Pulse Width, Video*, Slope, Alternating
Math Operation: Add, Subtract, Multiply , Divide, FFT
FFT: Hanning, Hamming, Blackman, Rectangular
Measure: Amplitude, Average, Base, Burst Width, Cyclic RMS, + Duty Cycle, - Duty Cycle, Fall Time, Frequency , Max, Mean,
Min, Rise Overshoot, Fall Overshoot, Rise Preshoot, Fall Preshoot, Peak-Peak, Period, Phase, Rise Time, RMS, Top, + Width, - Width, plus 8 advanced parameters for edge to edge measurements
Display: 5.7 in. Color TFT, 320 x 240 resolution, 64K color
Power Requirements: 100-240 VAC
Dimensions: 305 x 160 x 133 mm
Weight: 2.3 kg
Supplied Accessories: User Manual, 10:1 Probe Set (2 pieces), Power Cord, USB Interface Cable, EasyScope Software Installation Disk
