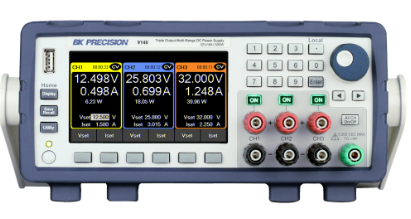

Max Output Voltage per Channel: 32V
Max Output Current per Channel: 8A
Max Output Power: 300W
"For detail specification please check the attachment below!"
General
Remote Sense Compensation: 1 V
Command Response Time (4): 10 ms
Power Factor:
0.98 / 115 VAC
0.94 / 230 VAC
I/O Interfaces: USB (USBTMC-compliant and virtual COM), LAN (1.5 LXI device specification 2016), GPIB (optional)
AC Line Input: 100 VAC to 240 VAC ± 10%, 47 Hz to 63 Hz
Maximum Rated Input Power: 500 VA
Temperature Ratings
Operation: 32 °F to 104 °F (0 °C to 40 °C)
Storage: 14 °F to 158 °F (-10 °C to 70 °C)
Dimensions: (W x H x D) 8.4” x 3.5” x 13” (213 x 88 x 330 mm)
Weight: 11 lbs (5 kg)
Standard Accessories: Power cord, test report & certificate of
calibration
Optional Accessories: Rack mount kit (RK2US)
