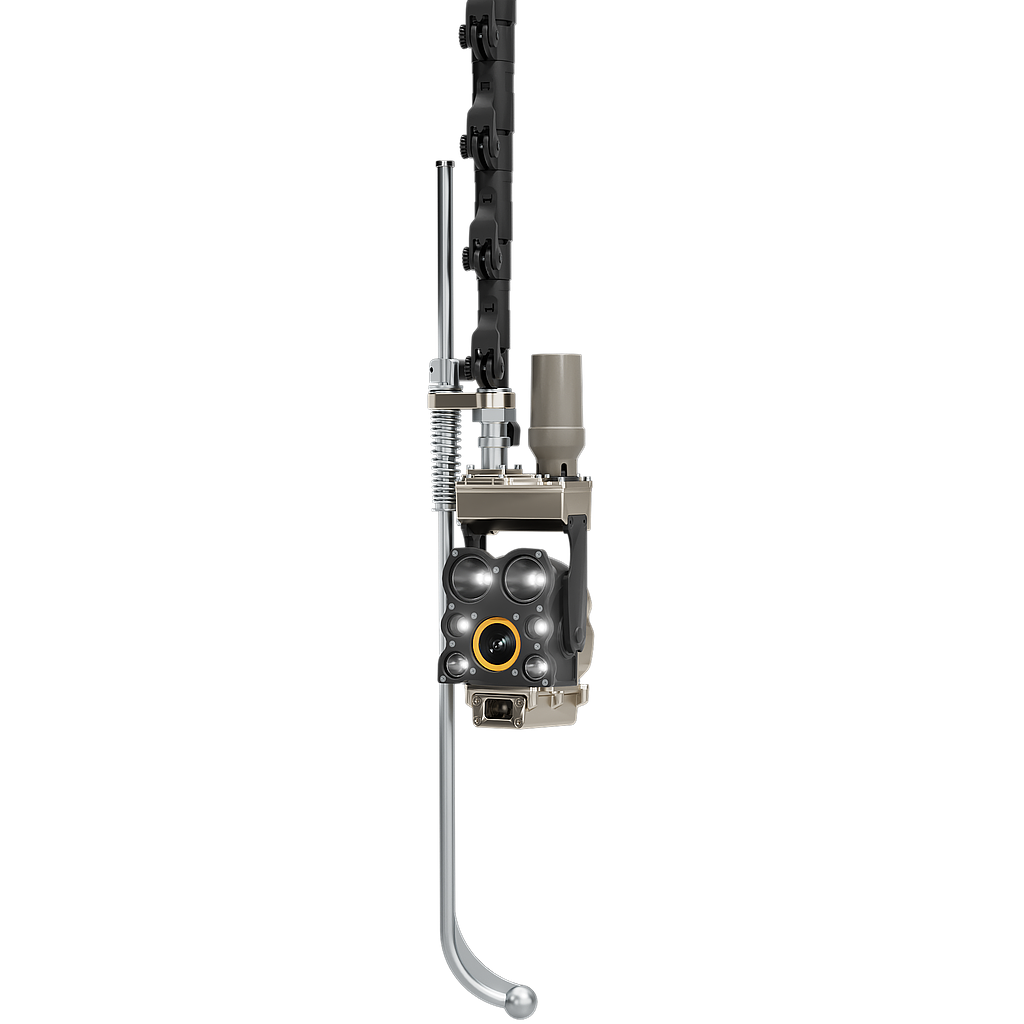

Bwell Peek2S Plus HD Wireless Periscope (>DN150)

Manhole camera

Deployment range: DN150 and up

Dimensions: 120×150×350mm

Weight: approx. 2.95 kg (excl. bipod)

Protection class: IP68

Permissible ambient temperature: -10℃~55℃

Camera

Tilt range: +20°, -90°

Camera resolution:

4.0 Megapixels

Full HD

2560×1440P

Optical zoom: 25 x

Light sensitivity (lux): 0.05 Lux

Lighting

2×1.5W High-power LEDs with reflector

2×9W High-power LEDs for medium-range

2×3W High-power LEDs for close-range

Laser measuring distance: 1.5 - 70m

Laser measuring accuracy: ±5cm

Battery: Battery

Pole

Length: 5m+3m (for extension)

Material: Carbon fiber

Bipod length: 0.8m

Control unit

Dimension: 10.4 inch

Weight: approx. 447g (excl. pad case)

Operating system: Android

Display resolution: ≥1920x1200P

Display type: Capacitive (10-fingers multi-touch)

Display information: internal operating environment, date, time, pitch angle

Battery: 8h

Data storage: 128G

Connection: Type-C

Data transmission: Wifi-connection
