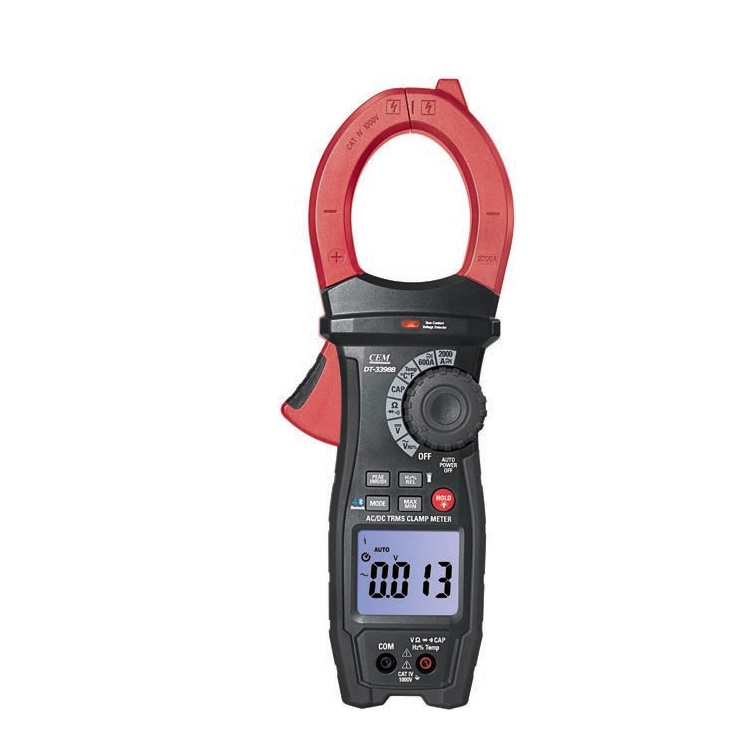

CEM DT-3398 AC True RMS Clamp Meters (True RMS, AC 2000A)

AC Current (Max Range Basic Accuracy Max. Resolution): 2000 A; ±(2.5%+5d); 1A

AC Voltage (Max Range Basic Accuracy Max. Resolution): 1000V; ±(0.8%+2d); 0.1mV

DC Voltage (Max Range Basic Accuracy Max. Resolution): 1000V; ±(1.0%+4d); 0.1mV

Resistance (Max Range Basic Accuracy Max. Resolution): 60MΩ; ±(1.0%+4d); 0.1Ω

Capacitance (Max Range Basic Accuracy Max. Resolution): 10mF; ±(3.0%+5d); 0.01nF

Electronic Frequency (Max Range Basic Accuracy Max. Resolution): 100kHz; ±(1.2%+3d); 0.01kHz

Continuity check: Buzzer sounds at 50Ω

Diode test: Test current <0.5mA Max 3V

Clam jaw opening: 2” (52mm)

Size (HxWxD): 308mm x 97mm x 47mm

Weight: 732g

Accessories:

1.5V AA x 3 batteries , test leads, gift box with carrying case.
