Function: Max Range - Basic Accuracy
Voltage DC: 600V ; ±(0.5%+1d)
Voltage AC: 600V ; ±(1.5%+2d)
Current DC: 400A ; ±(2.0%+5d)
Current AC: 400A ; ±(2.5%+4d)
Resistance: 40MΩ ; ±(3.0%+5d)
Temperature: 1000ºC/ 1832ºF ; ±(3.0%+3d)
Capacitance: 100uF ; ±(2.5%+5d)
Frequency: 10MHz ; ±(1.2%+2d)
Continuity check: Buzzer sounds at 50Ω
Diode test: Test current 0.3mA
Size (H x W x D): 197mm x 70mm x 40mm
Weight: 183g
Accessories: Test leads, gift box with carrying case, Temperature probe (361,362, 363, only) and 9V battery.
Datasheet

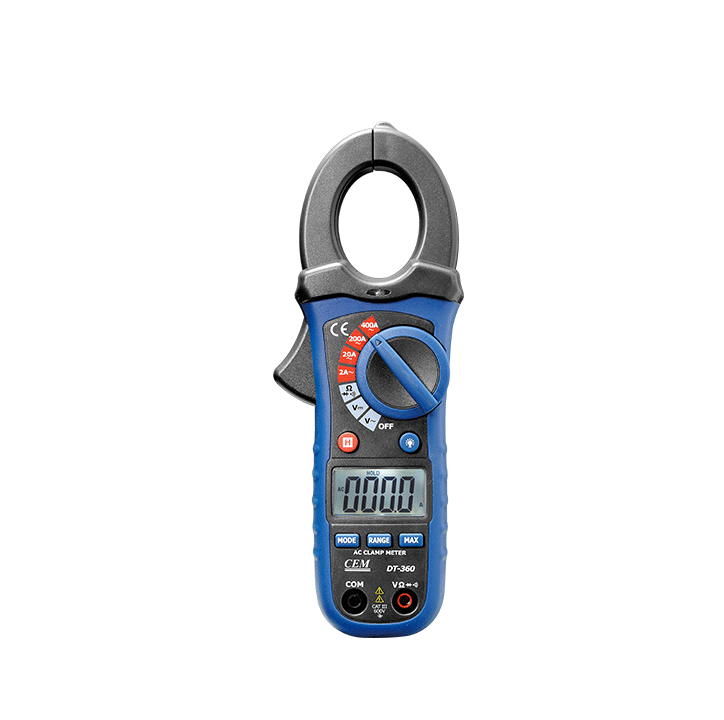

Features | DT-360 | DT-361 | DT-362 | DT-363 | DT-366 |
Current measurement | AC | AC | AC/DC | AC/DC | AC/DC |
Max. Resolution | 1mA | 1mA | 10mA | 10mA | 10mA |
LCD display counts | 2000 | 4000 | 4000 | 4000 | 6000 |
AC True RMS |
|
|
| * | * |
Display with backlight | * | * | * | * | * |
Data Hold | * | * | * | * | * |
Max Hold | * |
|
|
|
|
Zero Function |
|
| * | * | * |
Auto Power Off | * | * | * | * | * |
Low battery indication | * | * | * | * | * |
Peak Current |
|
|
| * |
|
Inrush Current |
|
|
|
| * |
1.2” (30mm) Jaw opening | * | * | * | * | * |
Specifications |
| ||||||
Function | Max Range | Basic Accuracy | DT-360 | DT-361 | DT-362 | DT-363 | DT-363 |
Voltage DC | 600V | ±(0.5%+1d) | * | * | * | * | * |
Voltage AC | 600V | ±(1.5%+2d) | * | * | * | * | * |
Current DC | 400A | ±(2.0%+5d) |
|
| * | * | 600A |
Current AC | 400A | ±(2.5%+4d) | * | * | * | * | * |
Resistance | 40MΩ | ±(3.0%+5d) | 20MΩ | * | * | * | 60MΩ |
Temperature | 1000ºC/ 1832ºF | ±(3.0%+3d) |
| * | * | * | * |
Capacitance | 100uF | ±(2.5%+5d) |
|
| * | 40mF | 60mF |
Frequency | 10MHz | ±(1.2%+2d) |
|
| * | * | * |
Inrush Current | 600A | ±(1.5%+2d) |
|
|
|
| * |
Continuity check | Buzzer sounds at 50Ω | * | * | * | * | * | |
Diode test | Test current 0.3mA | * | * | * | * | * | |
