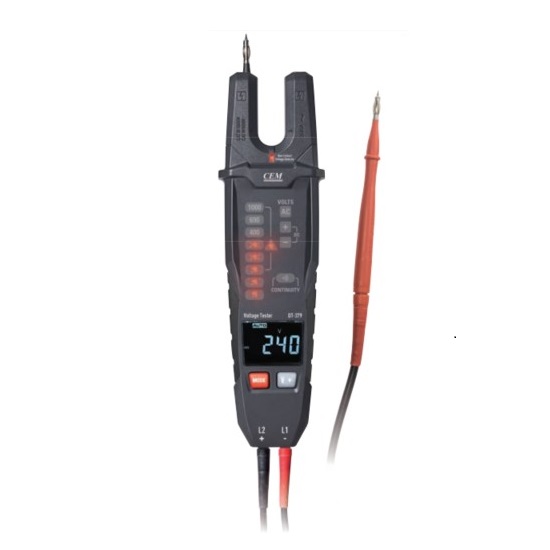

CEM DT-379 Voltage Tester (6V-1000V AC/DC)

Current AC: 200A; ±(3.5%+5d)

LEDs Voltage range: 12V-1000V AC/DC; FreTuency range: 0/40Hz-400Hz, Auto power on: ≥12V AC/DC

LCD Voltage range: 6V-1000V AC/DC; ±(3 % rdg + 5 digits), Frequency range:0/40Hz-400 Hz, Auto power on: ≥6V AC/DC

Internal basic load impedance/ Peak current: Maximum 3.5 mA at 1000 V 350 kΩ/Is <3.5 mA (no RCD tripping)

Continuity Test: 0-400kΩ; Nominal resistance +50 % , Test current ≤5μA

Resistance Measurement: 0Ω-1999Ω; ±(5 % rdg +10 digits) @20°C, Temperature coefficient: ±5 digits/10K, Test current : ≤30 μA

Size (HxWxD): 230mm x 44mm x 66mm

Weight: 259g

Accessories:

Test leads, gift box with carrying case, 2 “1.5V AA” batteries.

Datasheet
