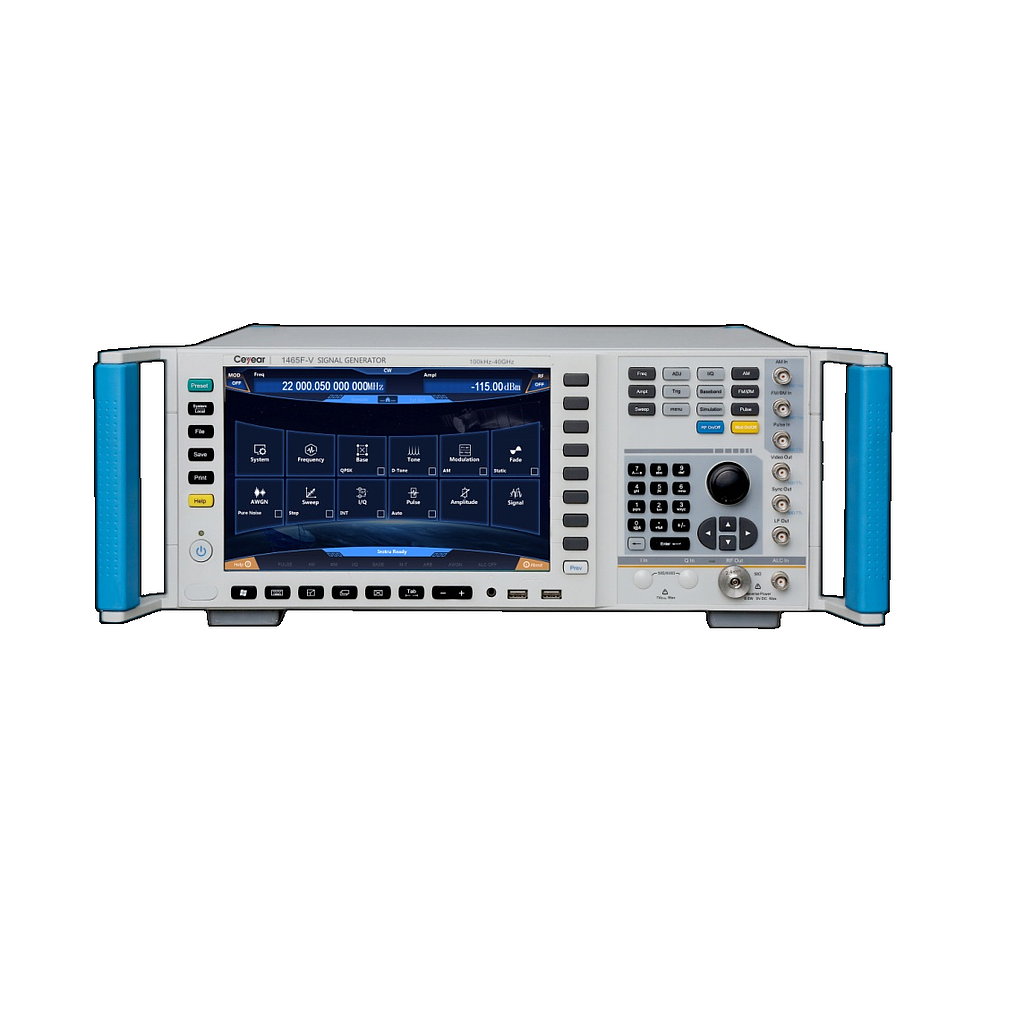

Frequency Range: 100 kHz to 40 GHz, (max. frequency 44 GHz)
Frequency Resolution: 0.001 Hz
Frequency Switching Time: <20ms (typ.)
Time Base Aging Rate: ±5×10-10/day (after continuous switch-on for 30 days) (typ.)
Reference Output
• Frequency: 10MHz
• Power: >+4dBm, to 50Ω
Reference Input
• Frequency: 1-50 MHz, 1Hz step
• Power: -5dBm to +10dBm, 50Ω impedance
Sweep Mode: Step sweep, List sweep, Analog sweep, Power sweep
High Precision Analog Sweep (Option H03)
Max. sweep speed:
• 100kHz ≤ f ≤ 500MHz: 25MHz/ms
• 500MHz < f ≤ 1GHz: 50MHz/ms
• 1GHz < f ≤ 2GHz: 100MHz/ms
• 2GHz < f ≤ 3.2GHz: 200MHz/ms
• 3.2GHz < f : 400MHz/ms
Sweep accuracy: ±0.05% Sweep width (for 100ms, within the maximum width of 100ms as specified)
Minimum Output Power
Standard: -20 dBm
Option H01: -110 dBm (-135 dBm configurable)
Maximum Output Power (Standard)
• 100kHz ≤ f ≤ 40GHz: 10 dBm
Maximum Output Power (Option H01 Programmable Step Attenuator)
• 100kHz ≤ f ≤ 40GHz: 10 dBm
Maximum Output Power (Option H05 High-power Output)
• 100kHz ≤ f ≤ 9GHz: 18 dBm
• 9GHz ≤ f ≤ 30GHz: 15 dBm
• 30GHz ≤ f ≤ 40GHz: 12 dBm
Maximum Output Power (Option H05 + H01A/B)
• 100kHz ≤ f ≤ 9GHz: 18 dBm
• 9GHz ≤ f ≤ 30GHz: 15 dBm
• 30GHz ≤ f ≤ 40GHz: 12 dBm
Power Resolution: 0.01 dB
Power Temperature Stability: 0.02 dB/ºC (typ.)
VSWR
• 100kHz ≤ f ≤ 2GHz: <1.4
• 2GHz < f ≤ 20GHz: <1.6
• 20GHz < f ≤ 40GHz: <1.8
• 40GHz < f ≤ 67GHz: <2.0
Harmonic Wave (Standard)
• 100kHz ≤ f ≤ 10MHz: < -25dBc
• 10MHz < f ≤ 2GHz: < -30dBc
• 2GHz < f ≤ 20GHz: < -55dBc
• 20GHz < f ≤ 40GHz: < -45dBc (typ.)
(at +10dBm or Max. specified output power, whichever is lower)
Sub-harmonic Wave (Standard)
• 100kHz ≤ f ≤ 10GHz: None
• 10GHz < f ≤ 20GHz: < -60dBc
• 20GHz < f ≤ 67GHz: < -45dBc
(at +10dBm or Max. specified output power, whichever is lower)
Non-harmonic Wave (Standard)
• 100kHz ≤ f ≤ 250MHz: < -58dBc
• 250MHz < f ≤ 3.2GHz: < -74dBc
• 3.2GHz ＜ f ≤ 10GHz: < -62dBc
• 10GHz ＜ f ≤ 20GHz: < -56dBc
• 20GHz ＜ f ≤ 28.5GHz: < -52dBc
• 28.5GHz ＜ f ≤ 40GHz: < -45dBc
• 40GHz ＜ f ≤ 60GHz: < -42dBc
(At 0dBm, beyond 3kHz offset)
Non-harmonic Wave (Option H04 Ultra Low Phase Noise)
• 100kHz ≤ f ≤ 250MHz: < -58dBc
• 250MHz < f ≤ 3.2GHz: < -80dBc
• 3.2GHz ＜ f ≤ 10GHz: < -70dBc
• 10GHz ＜ f ≤ 20GHz: < -64dBc
• 20GHz ＜ f ≤ 28.5GHz: < -52dBc
• 28.5GHz ＜ f ≤ 40GHz: < -45dBc
• 40GHz ＜ f ≤ 60GHz: < -42dBc
(At 0dBm, beyond 3kHz offset)
SSB Phase Noise (Carrier 1GHz, +10dBm or Max. Output Power)
Standard:
• -101 dBc/Hz @ 100Hz offset
• -121 dBc/Hz @ 1kHz offset
• -130 dBc/Hz @ 10kHz offset
• -130 dBc/Hz @ 100kHz offset
Option H04:
• -62 dBc/Hz @ 1Hz offset
• -91 dBc/Hz @ 10Hz offset
• -105 dBc/Hz @ 100Hz offset
• -123 dBc/Hz @ 1kHz offset
• -138 dBc/Hz @ 10kHz offset
• -138 dBc/Hz @ 100kHz offset
(Note: see more detail information in the ‘Resource’ – ‘Datasheet’)
Vector Modulation Accuracy
1465C/D/F-V:
• 50MHz – 40GHz: EVM(RMS%)<1.4%
(4Msps, root-Nyquist, α=0.3, QPSK, 0dBm)
Internal Modulation Bandwidth
Standard:
• 120MHz (Multi-tone, Tone quantity: 51, Frequency space: 2.4MHz, ±3dB bandwidth);
Option H31:
• 200MHz (Multi-tone, Tone quantity: 51, Frequency space: 4MHz, ±3dB bandwidth).
Option H36:
• 500MHz (Multi-tone, Tone quantity: 512, ±3dB bandwidth)
Option H37:
• 1GHz (Multi-tone, Tone quantity: 512, ±3dB bandwidth)
(Carrier 900MHz, 1.8GHz, 2.4GHz, 6GHz, 18GHz, 35GHz, 50GHz)
External Modulation Bandwidth: 200MHz (ALC OFF, input 100mVrms sine to channel I, ±4dB bandwidth) (Carrier 900MHz, 1.8GHz, 2.4GHz, 6GHz, 18GHz, 35GHz, 50GHz)
External Wide Modulation Bandwidth (Option H33): 2GHz (ALC OFF, input 100mVrms sine to channel I, ±6dB bandwidth) (Carrier 7GHz, 18GHz, 35GHz, 48GHz)
Internal Baseband Signal Generator
Channel quantities:
• 2 (I and Q)
Max. symbol rate:
• Standard: 60Msps(Max. 4bit/symbol)
• Option H31: 125Msps(Max. 4bit/symbol)
• Option H36: 156.25Msps
• Option H37: 312.5Msps
Baseband waveform internal memory:
• Standard: 1GSa
• Option H32: 2GSa
Modulation format：
• PSK: BPSK, QPSK, OQPSK, π/4 DQPSK, D8PSK, 16PSK
• QAM: 4, 16, 32, 64, 128, 256, 512, 1024
• FSK: 2, 4, 8, 16
• ASK
• MSK
• Arbitrary wave modulation.
Dual-tone mode max. frequency offset:
• 200MHz
EVM:
• <1.0% (typ.) (RMS%, Symbol rate 4Msps, root-Nyquist, α=0.3, QPSK)
Arbitrary wave modulation data format:
• Mat-File 5, ASCII, Binary, cap, csv
AWGN (Option S03)
• Type: Pure noise, continuous wave interference, additive noise
• Noise bandwidth: 120/200MHz
• Signal noise setting range: 0 – 60dB
RF Output Port: 2.4mm (male), impedance 50Ω
Power Consumption: < 400W
Dimension (max.)
• 435 (W) × 178 (H) × 498 (D) mm (excluding the handle)
• 517 (W) × 192 (H) × 550 (D) mm (including the handle)
Weight: < 28kg (the weight varies with the model and option configuration)
Power Supply: 100-120VAC, 50-60Hz; or 200-240VAC, 50-60Hz (self-adaptive)
See more detail information in the Datasheet
