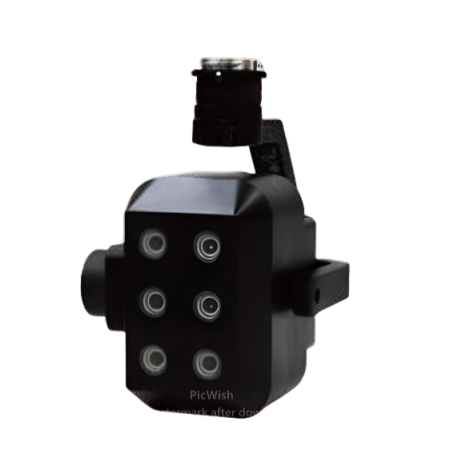

Assembly method: 6-channel multispectral
Target size: 1/2"
Effective pixels: 1.3Mpx
Shutter type: Global
Quantization bit number: 12bit
Field of view: 54.2°×44.5°
Ground resolution: 9.6cm@H120m
Coverage width: 123m@H120m
Spectral channel: 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 750nm@10nm, 840nm@30nm
Optical window: Sapphire optical glass window
Host size: 182mmx169mmx129mm (including gimbal)
Host weight: ≤940g (including gimbal)
Mounting interface: X-Port
Powered by: X-Port
Power consumption: 43W
Image format: 16-bit raw TIFF (including GPS)
Storage media: Standard 512G solid state drive
Processing software: FigSpec UAV-MS, FigSpec Merge-MS, FigSpec Studio
Parameter setting: DJI Pilot
Shooting trigger: Timing trigger
Shooting frequency: Maximum support 10Hz
Operating temperature: -10°C~+50°C (Relative wind speed ≥1m/s)
Storage temperature: -30°C~+70°C
Ambient humidity: RH ≤85% (non-condensing)
