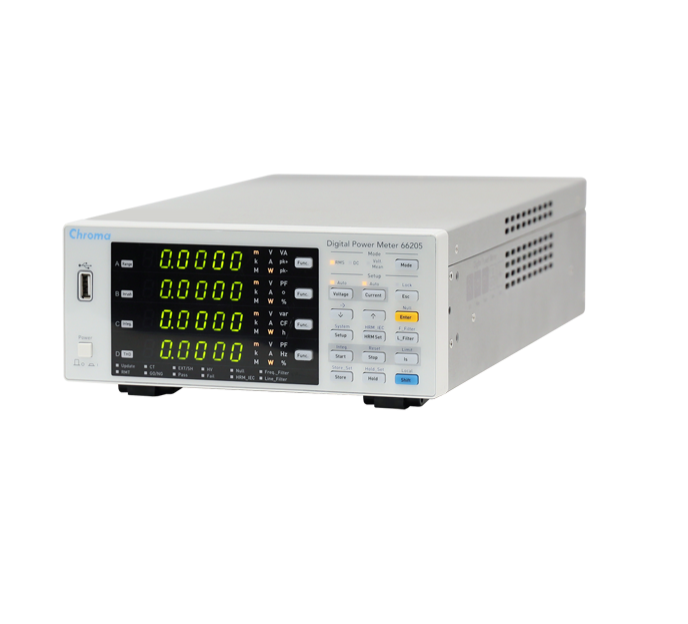

CHROMA 66205 Digital Power Meter (1CH)

- Number of channels: 1

Measured parameters: Vrms, Vpk+, Vpk-, V_harm, V_THD, CFv, Irms, Ipk+, Ipk-, I_harmonic, I_THD, CFi, Is, W, VA, var, PF, Freq_V, Freq_I, Wh, Ah, º (degree)

AC/DC Voltage

- Measurement ranges: 15V / 30V / 60V / 150V / 300V / 600Vrms (CF=2), 6 ranges

- Accuracy:

+ DC, 10Hz to 850Hz: 0.1% of reading + 0.05% of range

+ 850Hz to 10kHz: (0.1 + 0.05 × kHz)% of reading + 0.08% of range

- Harmonic accuracy:

+ DC, 10Hz to 850Hz: 0.1% of reading + 0.05% of range

+ 850Hz to 10kHz: (0.1 + 0.05 × kHz)% of reading + 0.08% of range

- Input impedance: 2MΩ

AC/DC Current

- Measurement ranges:

+ Low shunt: 5mA / 20mA / 50mA / 200mA / 300mA (CF=4)

+ High shunt: 500mA / 2A / 5A / 20Arms / 30Arms (CF=4)

- Accuracy:

+ DC, 10Hz to 850Hz: 0.1% of reading + 0.05% of range

+ 850Hz to 10kHz: (0.1 + 0.05 × kHz)% of reading + 0.1% of range

- Harmonic accuracy:

+ DC, 10Hz to 850Hz: 0.1% of reading + 0.05% of range

+ 850Hz to 10kHz: (0.1 + 0.05 × kHz)% of reading + 0.1% of range

Power

- Measurement range: 75mW ~ 18kW (60 ranges)

- Accuracy:

+ DC, 10Hz to 850Hz: 0.1% of reading + 0.05% of range

+ 850Hz to 10kHz: (0.1 + 0.07 × kHz)% of reading + 0.15% of range

- Power factor accuracy: 0.001 + (15ppm / PF) × Hz

Frequency

- Measurement range: DC, 10Hz ~ 10kHz

- Measurement conditions:

+ Voltage synchronization (10%~100% voltage range)

+ Current synchronization (30%~100% current range)

Other

- Display resolution: 5 digits

- Update rate: 50ms / 100ms / 250ms / 500ms / 1s / 2s / 5s / 10s

- Power supply: 100~240V ±10%, 50/60Hz

Communication

- Standard: USB (host), USB (device), GPIB, RS232

- Optional: LAN

Environment

- Operating temperature: 0°C ~ 40°C

- Storage temperature: -40°C ~ 85°C

- Safety & EMC: CE (including EMC & LVD)

- Dimensions (H x W x D): 88 x 208 x 348 mm / 3.47" x 8.19" x 13.7"

- Weight: approx. 4.4 kg / 9.7 lbs
