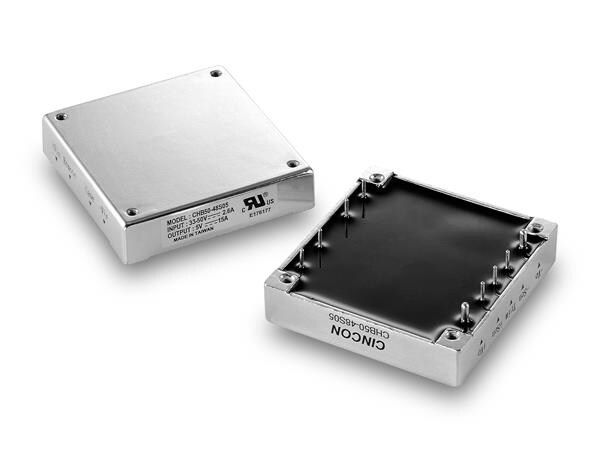

Cincon CHB50-24S33 Isolated DC-DC Converter, 25 to 50 Watt, Wide Input Range, Single Output, 18-36VDC Input, 3.3VDC Output

Width: 57.9 mm (2.28 in)

Height: 12.7 mm (0.5 in)

Length: 61 mm (2.402 in)

Industry: Industrial

Compliance: UL; TUV

Efficiency: 81 %

Unit Weight: 88 g

Output Power: 33 W

Input Voltage: 18 V to 36 V

Cooling Method: Convection

Mounting Style: Through Hole

Mechanical Style: Isolated

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 10 A

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
