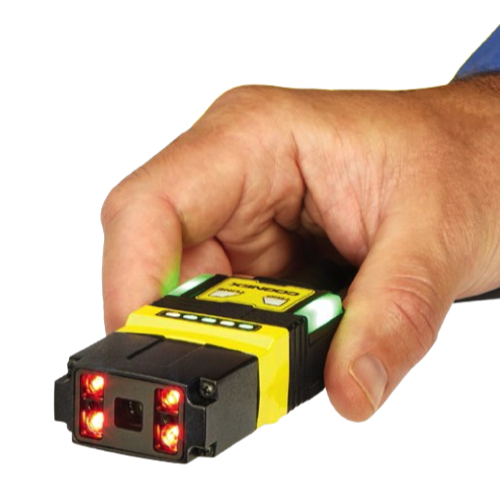

Cognex Dataman 280 Fixed-Mount Barcode Readers (1440 x 1080 pixels)

Algorithms and Technologies: 1DMax, 2DMax, Hotbars, PowerGrid

Image Sensor: 1/3" CMOS

Image Sensor Properties: Diagonal 4.81 mm, 3.45 μm square pixels

Image Resolution: 1440 x 1080 pixels

Electronic Shutter Speed:

Min. exposure: 29 μs

Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination)

Acquisition: Up to 45 Hz

Lens Options: 6.2 mm (3 pos or HSLL), 16 mm (manual or HSLL), 6.2 mm UV, 6.2 mm and 16 mm IR, C-Mount accessory

Trigger and Tune Buttons: Yes, with Quick Setup Intelligent Tuning

Aimer: 2 green aimer LEDs

Discrete Inputs: 2 opto-isolated, 2 configurable

Discrete Outputs: 2 opto-isolated, 2 configurable

Other I/O Points: 2 user configurable as inputs or outputs

Status Outputs: 5 status LEDs, audible beeper, 2 visual indicator lights

Lighting: Modular/field configurable lighting: 4 independently controlled high powered LEDs (red, white, blue, IR, UV),

band pass filters and polarization filters available

Communications: Serial and Ethernet interface

Protocols: RS-232, TCP/IP, PROFINET, EtherNet/IP™, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link

Java Scripting enabled for custom protocols

Power: 24V +/- 10% PoE (Power over Ethernet) Class 3

Power Consumption: ≤7.5W

Material: Zinc alloy/aluminum

Weight: 6.2 mm: 141 g; 16 mm: 169 g

Right angle configuration adds 50 g

Dimensions

Straight configuration 6.2 mm: 75.5 x 42.4 x 23.6 mm

Straight configuration 16 mm: 90.6 x 42.4 x 23.6 mm

Right angle configuration 6.2 mm: 78.5 x 42.4 x 37.8 mm

Right angle configuration 16 mm: 78.5 x 42.4 x 52.9 mm

Operating Temperature: 0–40 °C (32–104°F)

Storage Temperature: -10–60 °C (14–140°F)

Operating and Storage Humidity: <95% non-condensing

Protection: IP67
